K-C303

Model NO.：K-C303
Scale：Medium

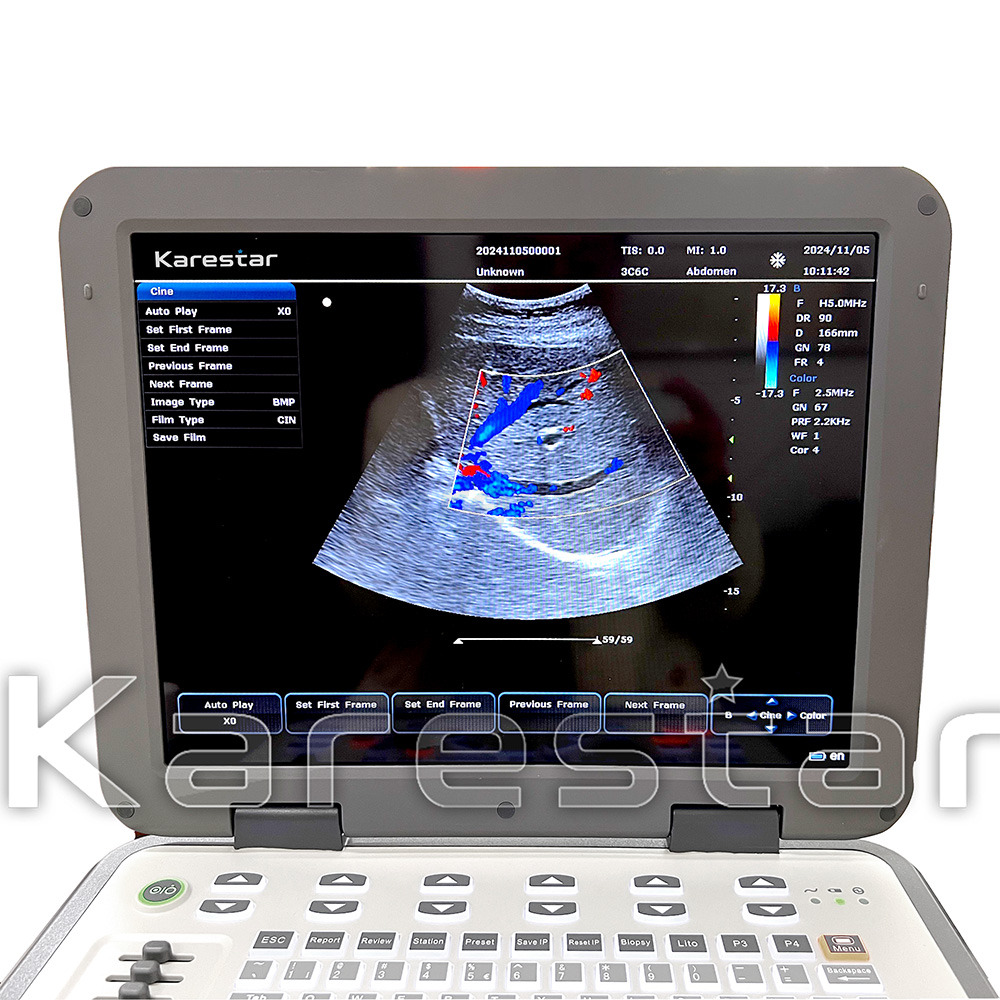

Display：15 Inch HD Display,Progressive Scan, Wide Angle O

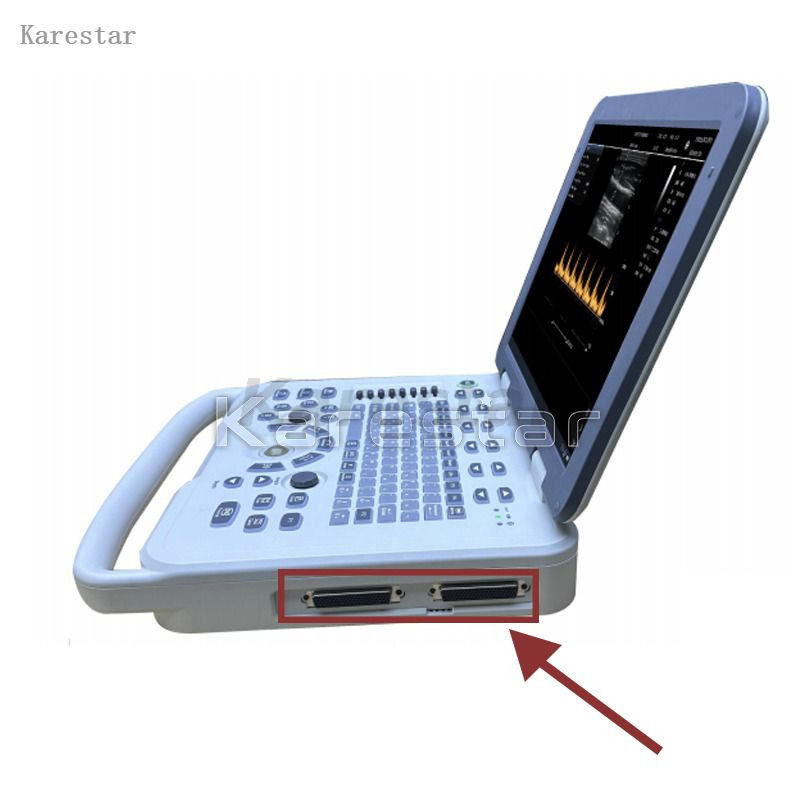

Probe Socket：2 Probe Sockets
Battery：Build-in Lithium Battery Can Work More Than 3hours
Scanning Mode：B, B/B,4b,B+M, B+Color,B+Pdi,B+Pw,B+Color+Pw,B/Bc
Application：Abdomen / Cardiac / Obstetrics / Gynecology
Language：English, French, Portuguese, Russian and etc.
Quality Certification：CE
Operation System：Linux
Gray Scale：256 Levels
ECG：Optional
HD Imaging：Yes
Imt Automatic Measurement：Yes
Editable Report：Yes
Guide Line of Biopsy Puncture：Support

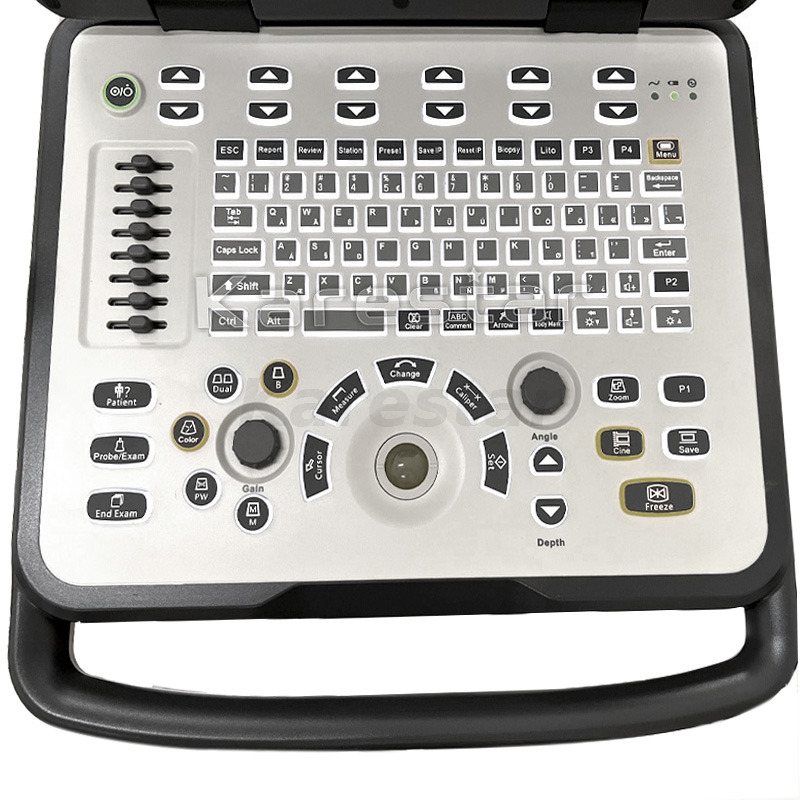

Standard Key Board and Backlit Key：Yes
Transport Package：Carton Boxes
Specification：370mm×350mm×70mm
Trademark：Karestar
Origin：Jiangsu, China

Quantity:
Size:	370mm×350mm×70mm
Availability:





Inquire Add to Basket

Model:
K-H303
Brand:
Karestar

portable ultrasound scanner Color Doppler Ultrasound Ultrasound Scanner Medical ecografo Handheld ultrasound scanner Diagnostic Ultrasound portable ultrasound Ultrasound Human Ultrasonido Device Ultrasound Scanner

Product Description

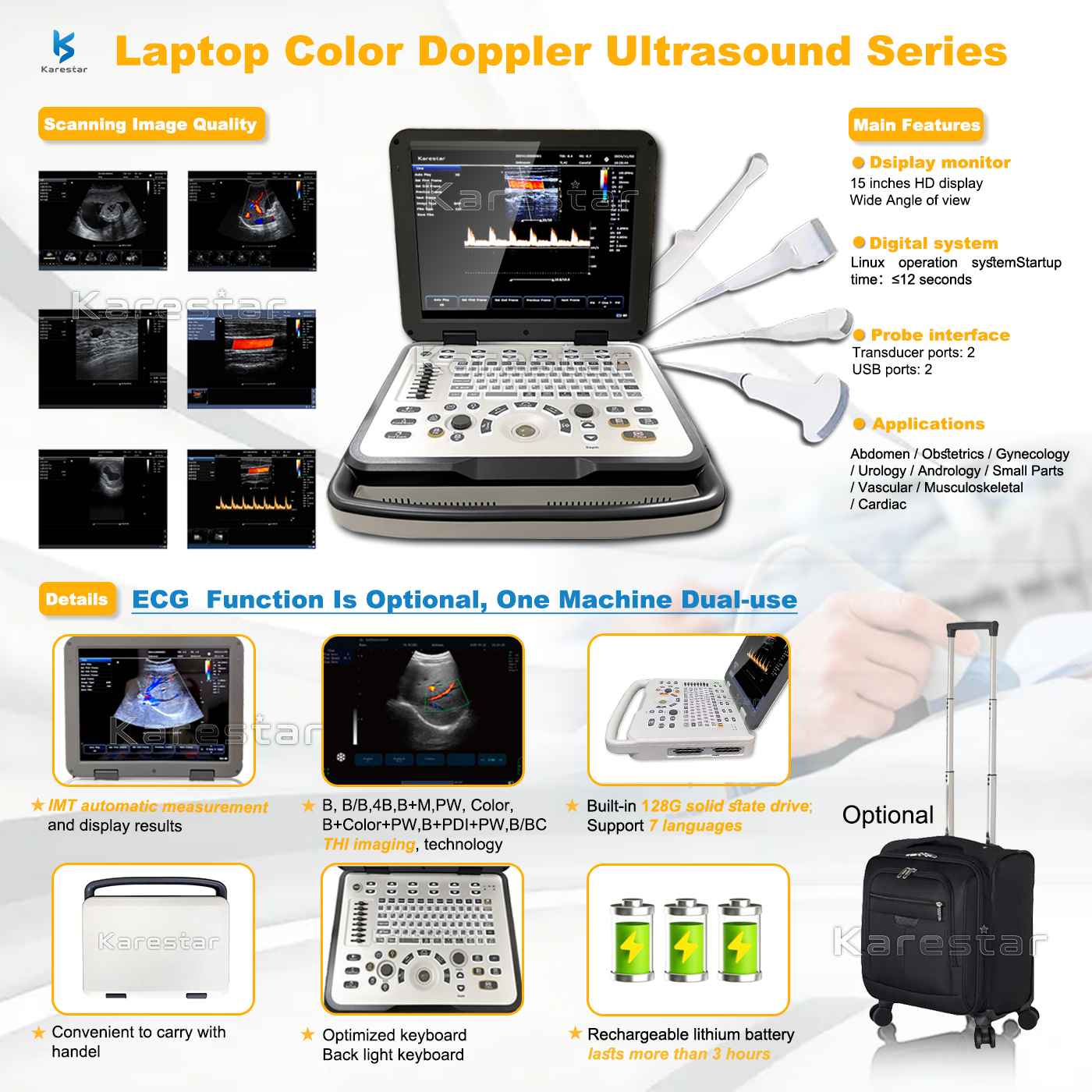

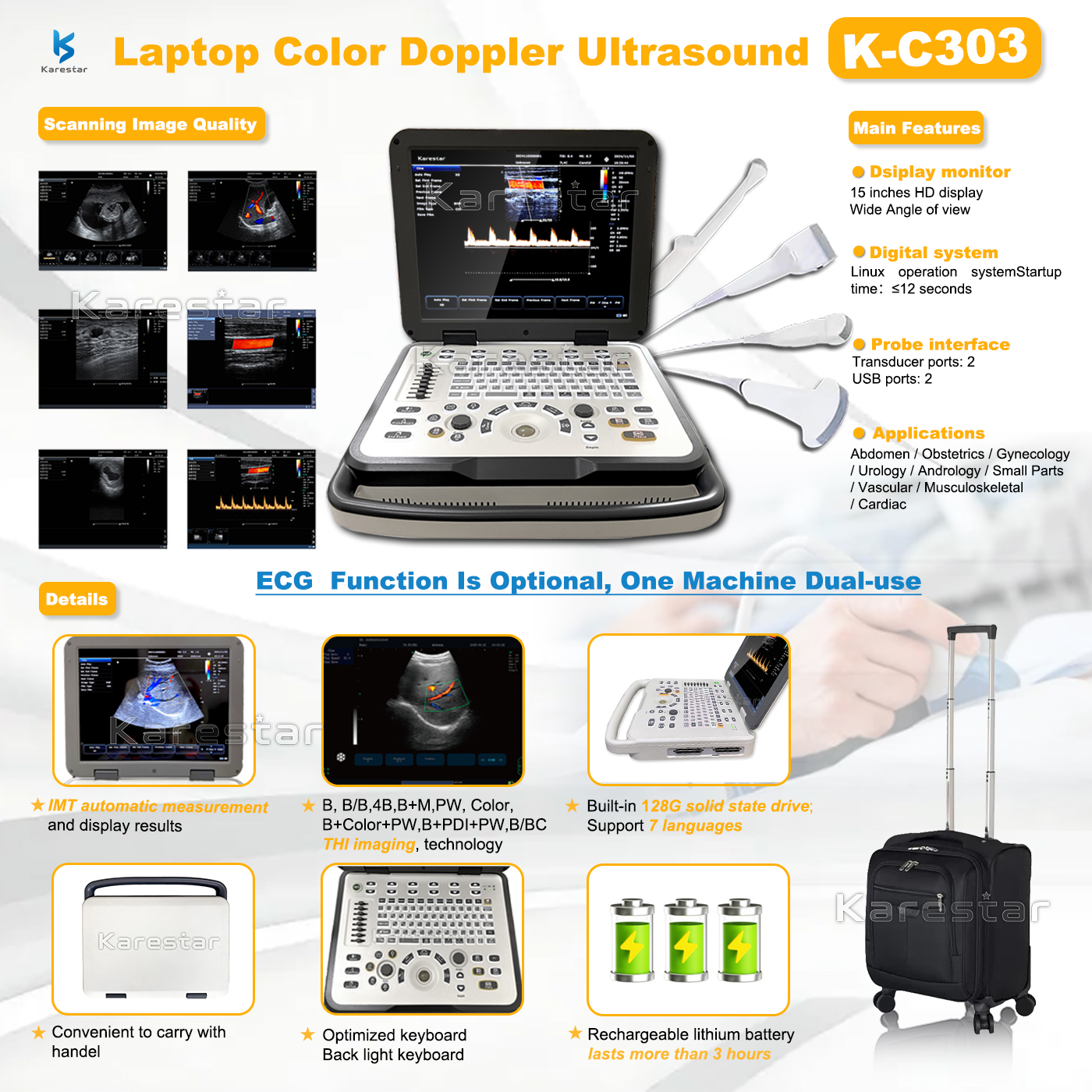

K-C303彩页

Quick Details:

1.15 inches HD display;Linux operation system;
2. 2 probe sockets, video, s-video, HDMI and USB ports;
3.Rechargeable lithium battery;
4.Display modes:B, B/B,4B,B+M,PW, Color,PDI;B+Color,B+PDI,B+PW,B+Color+PWB+PDI+PW★B/BC;
5.THl imaging, technology, IMT automatic measurement;
6.Applications:Abdomen / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Musculoskeletal/ Cardiac; 7. Support 7 languages (Chinese,English,Spanish,Czech,French,German,Russian)Can be easily extended to support other languages;

8.ECG is optional, one machine dual-use.

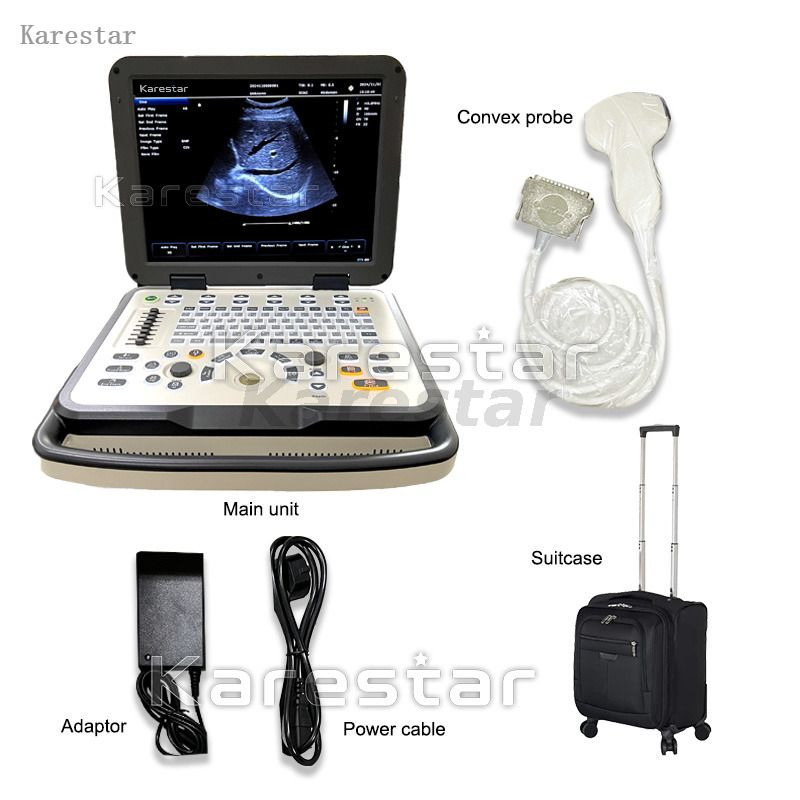

Standard Configuration		Optional configuration
15 inches main unit+2 probe connectors	1pc	Optional probes
3.5MHz convex probe	1pc	Portable carrying bag
Suitcase	1pc	Trolley
AC Adapter	1pc
Pulg and cable	1pc
User's manual	1pc

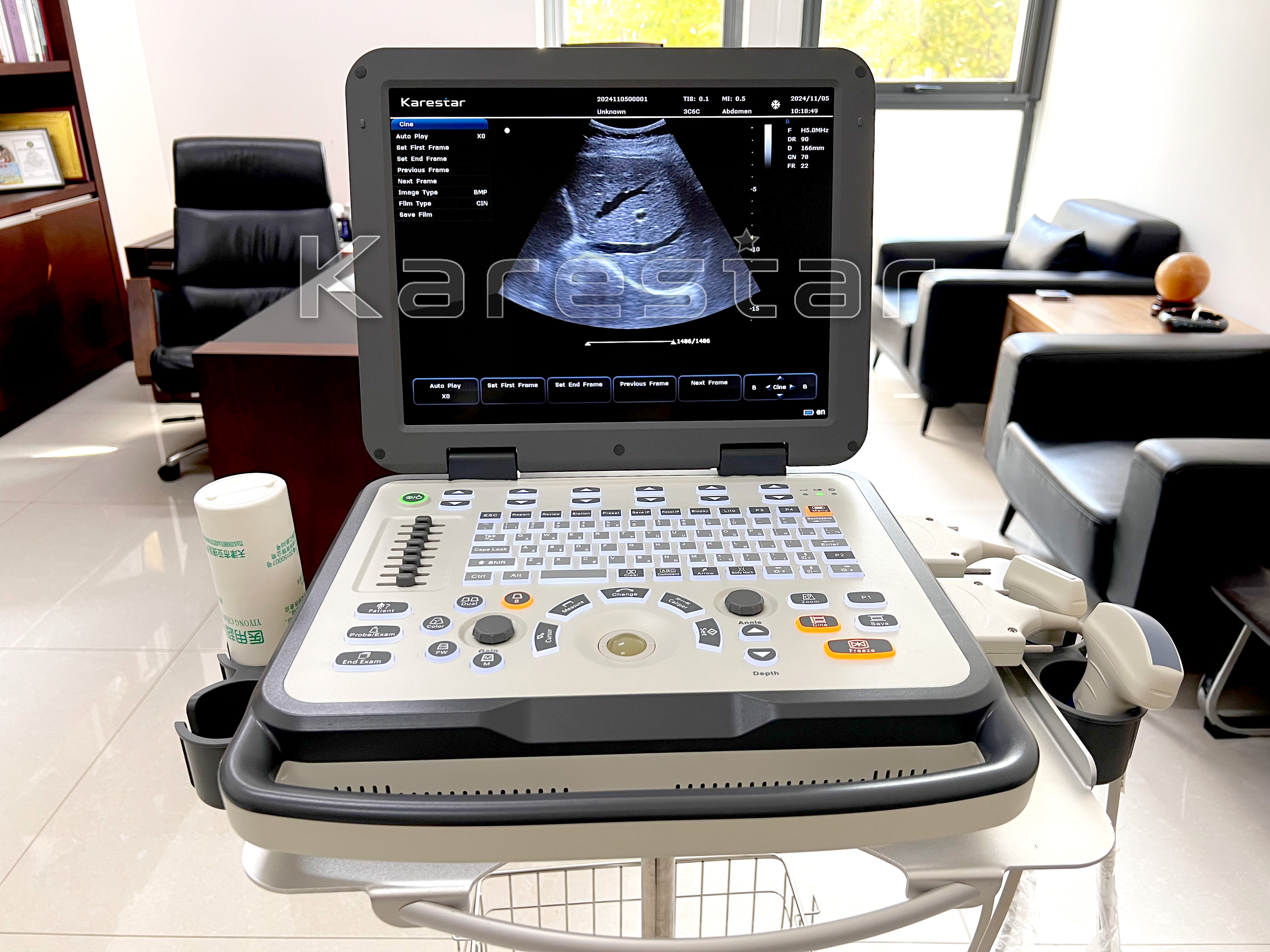

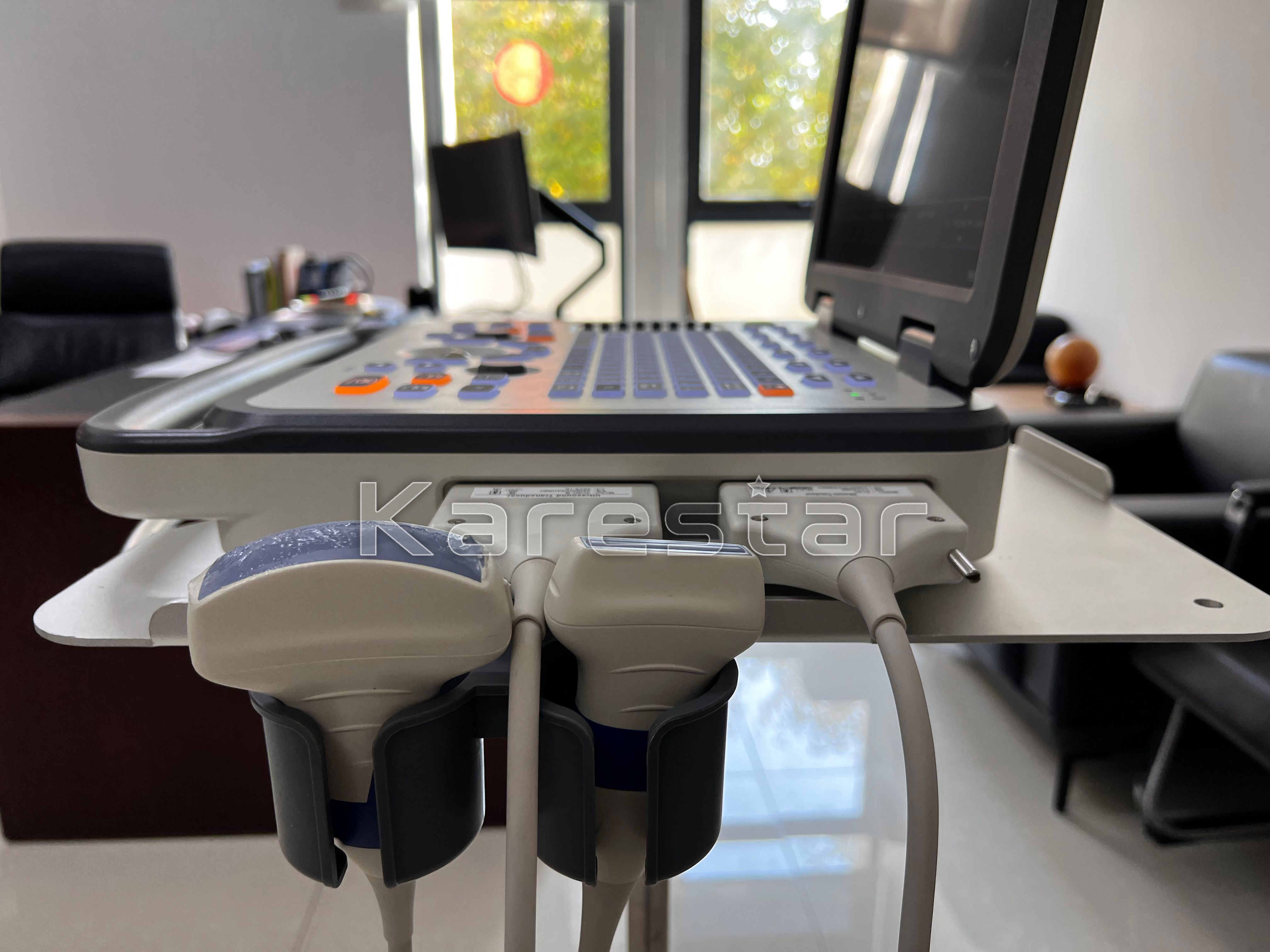

444 2024_11_05_10_21_IMG_3370 111

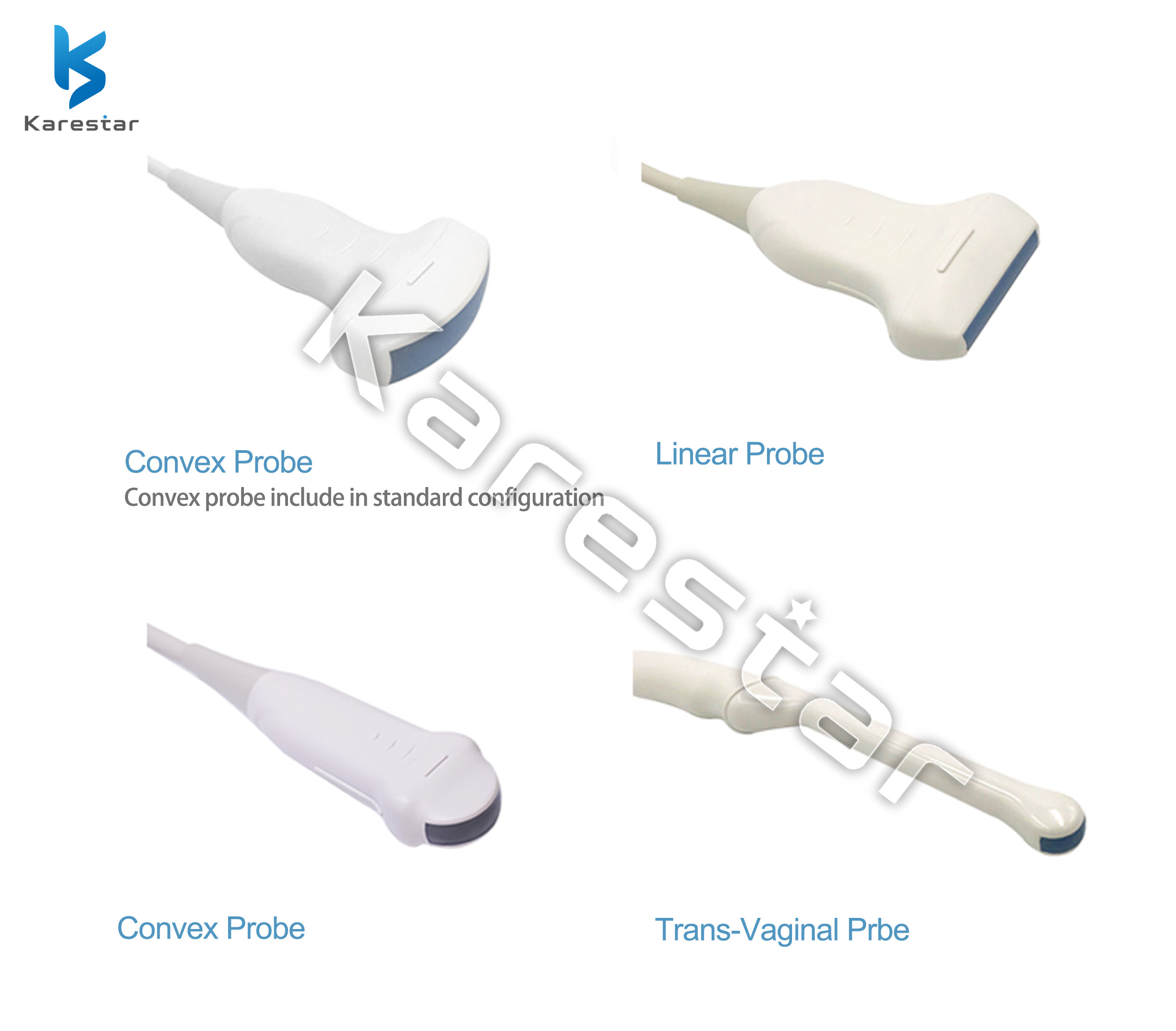

人用探头

Probe	Convex Array Probe	Linear Array Probe	Trans-Vaginal Probe	Micro-convex probe
Frequency	Central 3.5 MHz (2.0MHZ to 10.0MHZ)	Central 7.5 MHz (5.0MHZ to 10.0MHZ)	Central 6.5 MHz (5.0MHZ to 9.0MHZ)	Central 6.5MHz
Pitch	0.516mm	0.352mm	0.216mm	N/A
Radius	60mm	N/A	10 mm	N/A

Probe	Convex Array Probe	Intrarectal Linear Array Probe
Frequency	Central 7.5 MHz	Central 3.5 MHz
Pitch	N/A	N/A
Radius	38mm	64mm

Application

Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics / Musculoskeletal

Physical Specifications

Equipment size365mm×365mm×75mm

Equipment weightLess than 5.5kg

Transducer Ports	2
USB Ports	2
Battery Capacity	Rechargeable lithium battery lasts more than 3 hours
Hard Disc	Built-in 128G solid state drive ,make the storage safer and more reliable
USB Ports	2 (use for:U-disk,USB printer,USB foot switch,USB keyboard,USB mouse,etc)
Ethernet Port	1

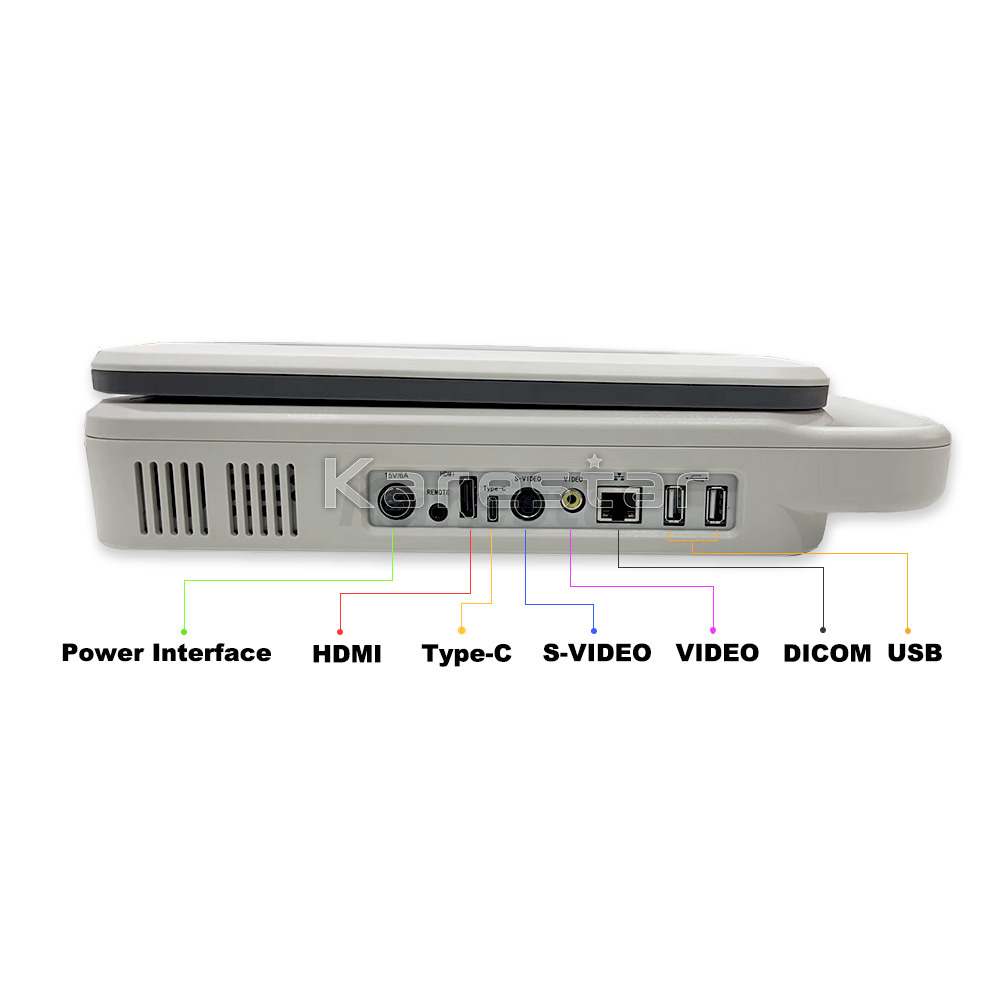

External Display	VIDEO, S-VIDEO, HDMI
Focus position	Dynamic electron focusing
Frequency conversion	2MHz~12MHz (depend on probe type)
Beam-former Frequency Range	1~40 MHz
Grey Levels	256
Dynamic range	80~280dB adjustable
Processing technology	Rich image processing technology, for instance frames average, view angle,edge enhance, Gamma ,etc
Function of puncture	Support guide line of biopsy puncture
Printer(Optional)	USB Printer, Digital Laser Printer, Digital B/W Thermal Printer
Printing Area	Image, report, Image+report
Image storage	Storage Format: BMP,JPG,DCM,FRM(single image); CIN,AVI(multiple images), DICOM Built in workstation,support patient data search and browse Export Video Format: AVI Export Image Format: CIN,FRM, BMP, JPEG, DICOM USB Flash Drive
Pan/Zoom	Real-Time Image Zoom, Zoom Range: 100%~400%, Up/Down/Left/Right Inversion

Technology

All-digital signal processing Tech

Dual/Quard Tech

Speckle Reduction Tech

Tissue Harmonic Imaging Tech,B-mode: Fundamental and Tissue harmonic imaging

Color Flow Mapping (Color) Tech

Imaging Parameters Preset

Tissue Special Image

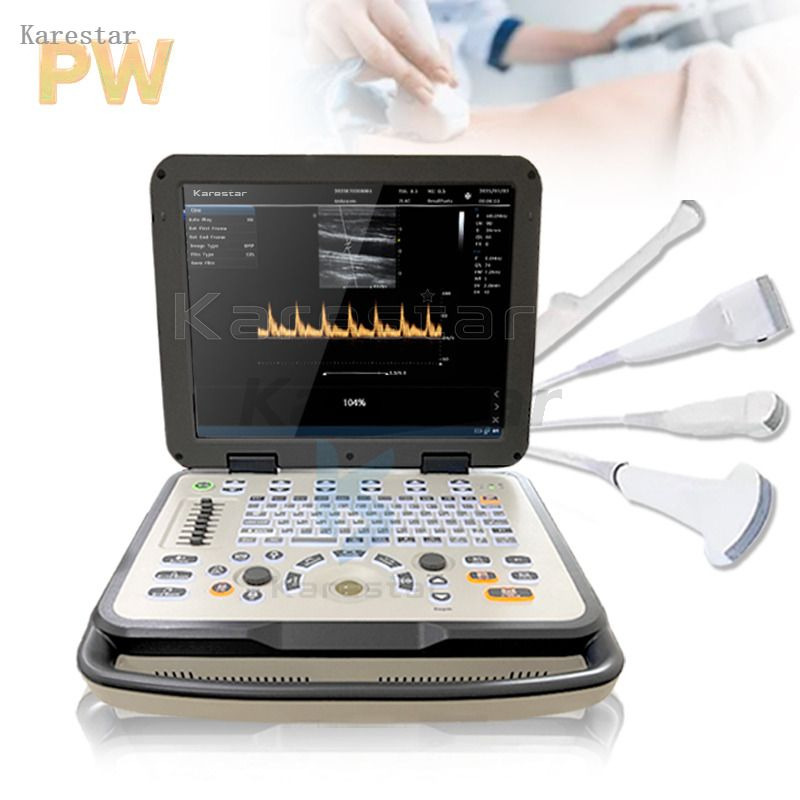

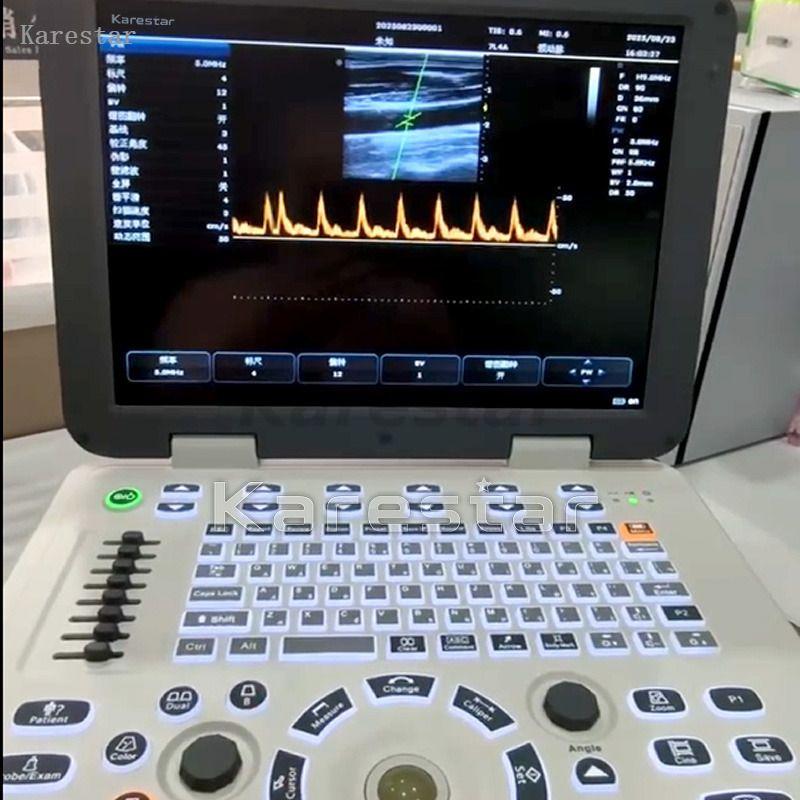

PW Function

B/BC Dual Real-Time

Other option:

*Printer

*Carrying bag

*Trolly

Karestar-Technology-Xuzhou-Co-Ltd- (2)

Karestar-Technology-Xuzhou-Co-Ltd- (1)

Q1: Are you trading company or manufacturer?

A: We are factory which has over 7 years' manufacturing experience.

Q2: Why we find some prices are very high compared with some other suppliers, and from the picture or it's model number, all looks the same?

A: As China is still a developing country, there are only a few products with patent rights, but the copy products spread very fast on the market. Of course, the prices of those copy products is cheaper due to low material, craft and quality control. Anyway, price, quality and service is tightly related.

Q3: What's the MOQ?

A: The MOQ is 1 Set, and samples can be sent for your evaluation.

Q4: How can get the shipping cost?

Please tell us your destination or delivery address, we will check the best Sea Freight or Air Freight for you based on your requirements.

Q5: How long is your delivery time?

A: Usually 3-30 days after order confirmed. Based on the item and quantity.

Q6: Can you do OEM/Private logo/label?

A: Yes, we can do OEM/private logo/label for you. We also have complete facilities and R&D team ready for your service.

Q7: What is your terms of payment?

A: We accept T/T, L/C, Western union, Paypal and more. Please suggest your preferred payment method.

Q8: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q9: How to deal with the faulty?

A: First, our products are produced under in strict quality control system, but if any faulty, we will send new spare partrs for free within warranty year.

Secondly, our after-sales department will periodically follow up customers.
