K-C508

Mode：NO. K-C508
Scale： Medium
Display：15.6 Inch Large LED Display
Scanning Mode：4b, B|M, M, Cfm ,B+CF, Pdi, Dpdi, Thi,Pw,Cw
Application：Andrology, Cardiac, Peripheral Vascular Msk
Warranty：Lifetime
Quality Certification：CE
Interface：Video, S-Video, 2 USB, PAL,Dicom
After-Sale Service：Return and Replacement
Feature：Virtual Convex Array and Convex Array Expansion
System：PC Platform

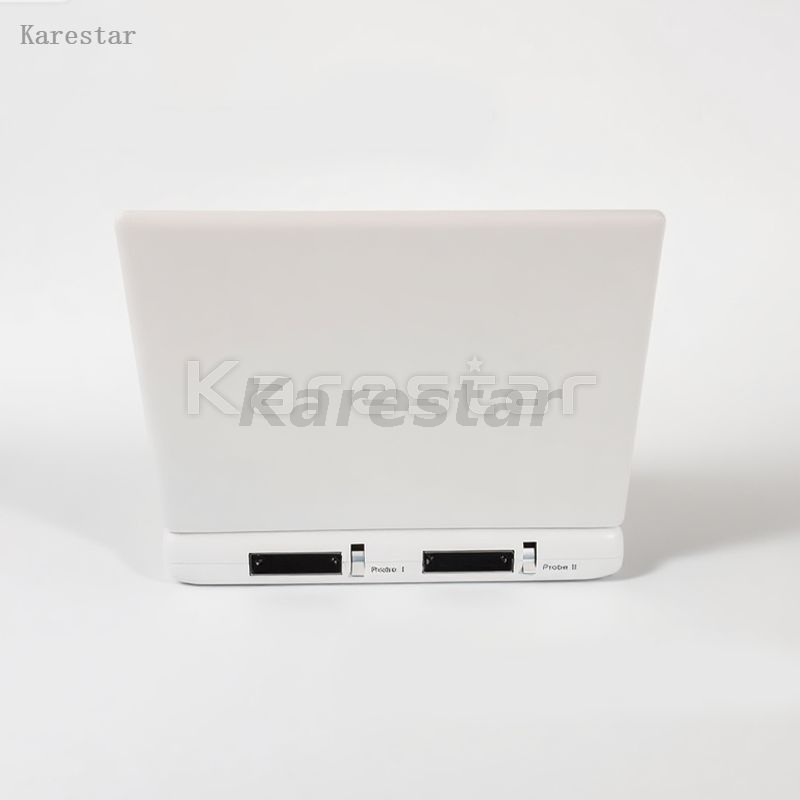

Probe Socket：2 Probe Sockets
Instrument Classification：Class II
Language：English, French, Portuguese and etc.
Pw Auto Trace Measurements：Yes
Battery：Build-in Lithium Battery
Shelf Life：2 Years
Transport Package：Carton Boxes
Trademark：Karestar
Origin：Jiangsu, China
Production Capacity：2000 Unit/Units Per Year

Quantity:
Availability:





Inquire Add to Basket

Model:
K-C508
Brand:
Karestar

Color Doppler Ultrasound Machine ecografo Ultrasound Scanner Ultrasonic-Optical-Electronic-Equipment Medical-Equipment Ultrasound Scanner Medical Handheld ultrasound scanner Diagnostic Ultrasound portable ultrasound Ultrasound System Price

Product Description

5.6 Inches Touch Screen Professional 3D Echo Ultrasound Top Quality Color Doppler Ultrasound Machine

Quick Details:

1. Large 15.6 inches LED display+12.6 touch screen operation display

2. Large capacity Built-in battery

3. Ports: 2 Probe sockets (switch probe easily by one button), 2 USB , Video, S-Video, VGA, DICOM

4. Imaging Modes: B-Mode/CFM (Color Flow Doppler mode)/M-mode/PW-Mode (Pulse Wave Doppler mode)/CW (Continuous Wave Doppler) (optional)/PDI (Power Doppler Imaging)/DPDI (Directional Power Doppler Imaging)/TDI (Tissue Doppler Imaging)/SMV-Mode (optional)/Wide-field imaging/Picture-in-picture/Anatomical M-Mode/Puncture mode (optional)/Contrast mode (optional)

5.Applications: Abdomen / Cardiac / Obstetrics/ Gynecology /Musculoskeletal /Vascular / Pediatrics /Andrology / Small Parts / Vascular / Pediatrics

6. Built in 3D software and 4D option

7. PC-based Color Doppler with Windows system and can be compatible with any printer

8.Support multi-languages

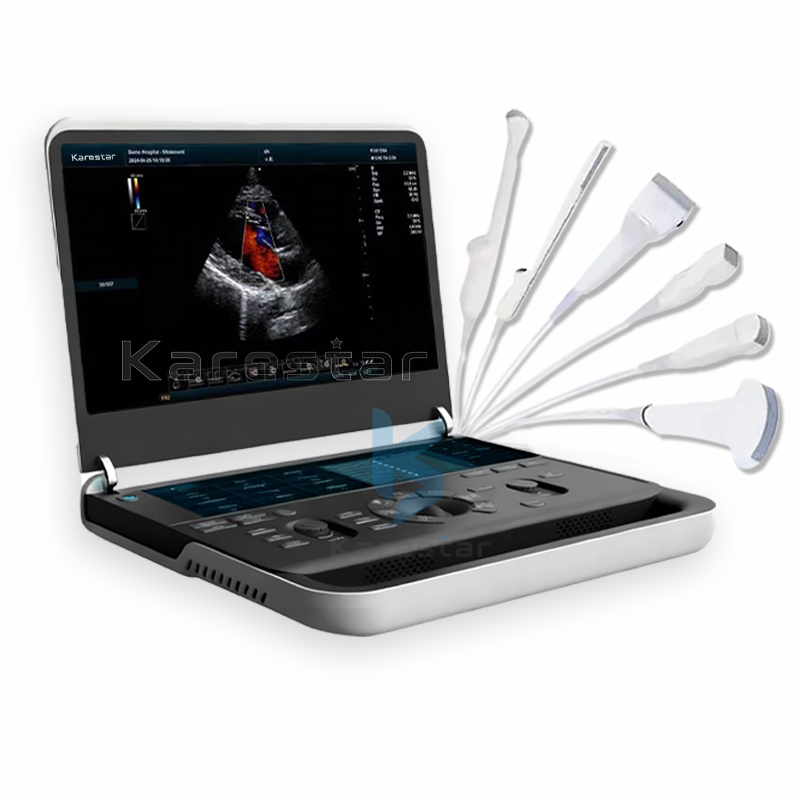

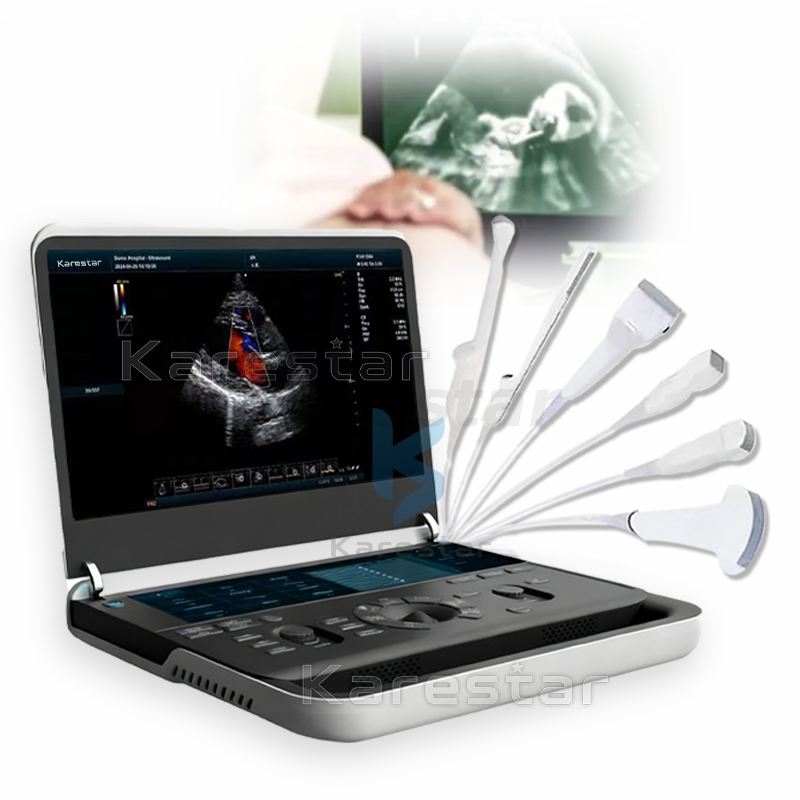

主图无背景

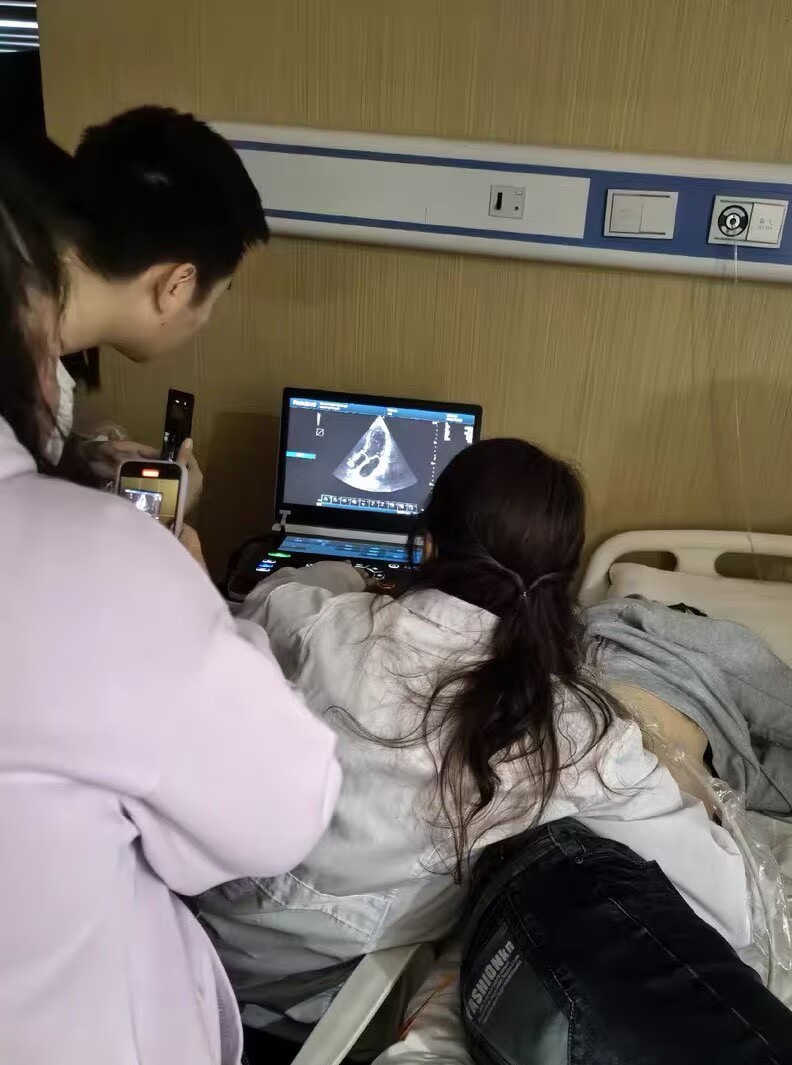

1111

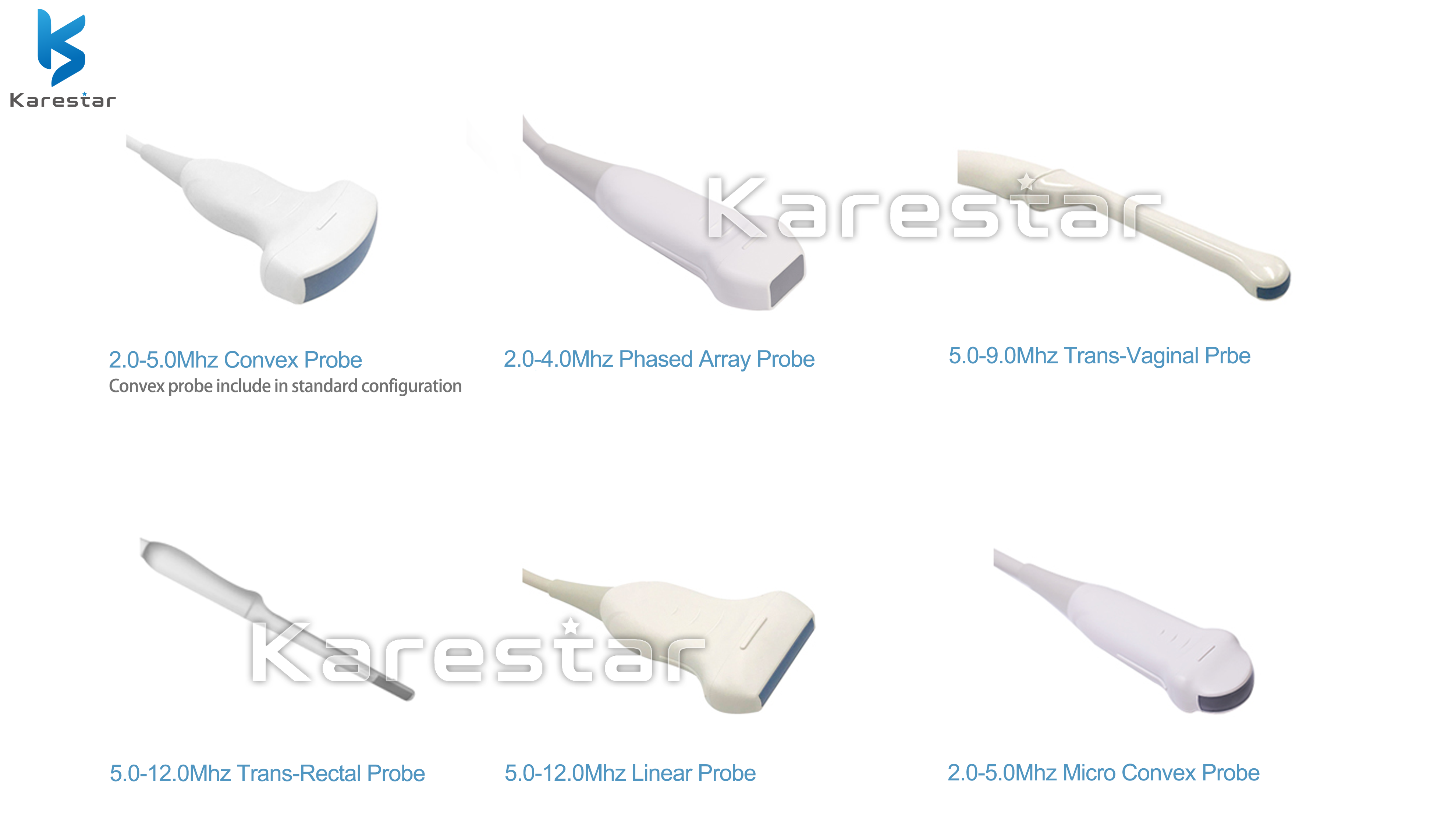

人用探头

Probe	L12-5L40N Linear Array Probe	L12-5L40N Linear Array Probe	L12-5L40N Linear Array Probe	L12-5L40N Linear Array Probe
Frequency	4.5 MHz to 12.MHz	4.5 MHz to 12.MHz	6.0 MHz to 14.0MHz	6.0 MHz to 14.0MHz
Radius	40mm	40mm	40mm	12mm
Elements	192	192	192	192

Probe	C5-2R60N Convex Array Probe	C5-2R50N Convex Array Probe	C5-2R50S Convex Array Probe	C5-2R50S Convex Array Probe
Frequency	2.0 MHz to 6.0MHz	2.0 MHz to 6.0MHz	2.0 MHz to 6.0MHz	2.0 MHz to 4.0MHz
Radius	60°	72°	72°	72°
Elements	192	192	160	64

Probe	C9-5R10N Trans-Vaginal Probe	L12-5L60N Trans-Rectal Probe	C5-2R20N Micro-Convex Probe
Frequency	4.0 MHz to 9.0MHz	4.0 MHz to 12.0MHz	2.0 MHz to 6.0MHz
Radius	151°	60mm	103°
Elements	192	192	192

Other option:

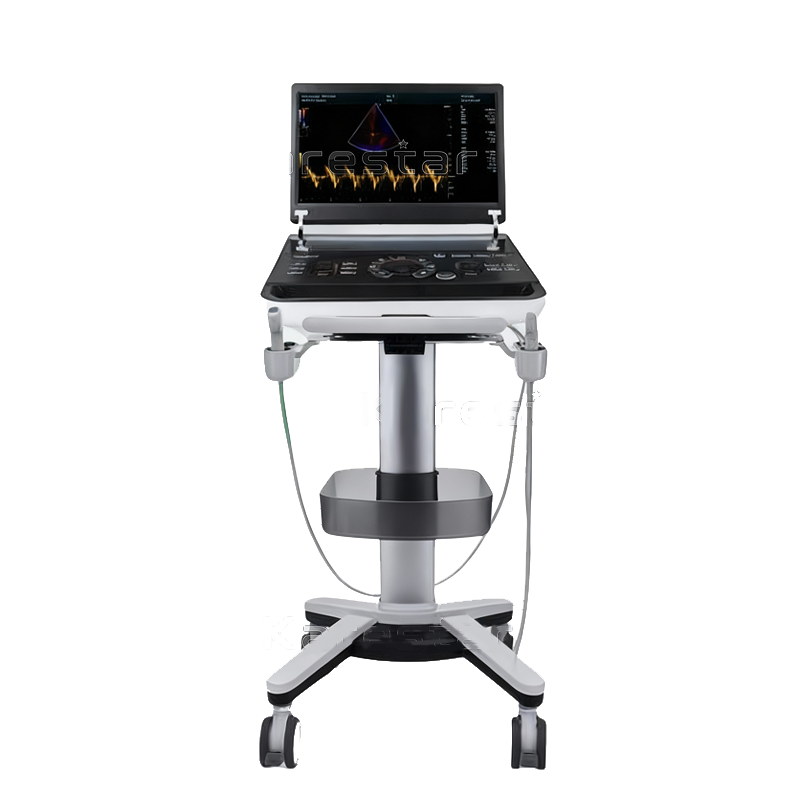

Trolley

Application

Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics / Musculoskeletal/3D/4D option

Physical Specifications

Equipment size:376mm×355mm×51mm

Equipment weight:Less than 4kg

Packing size:500mm×290mm×500mm

Packing weight:10.55kg

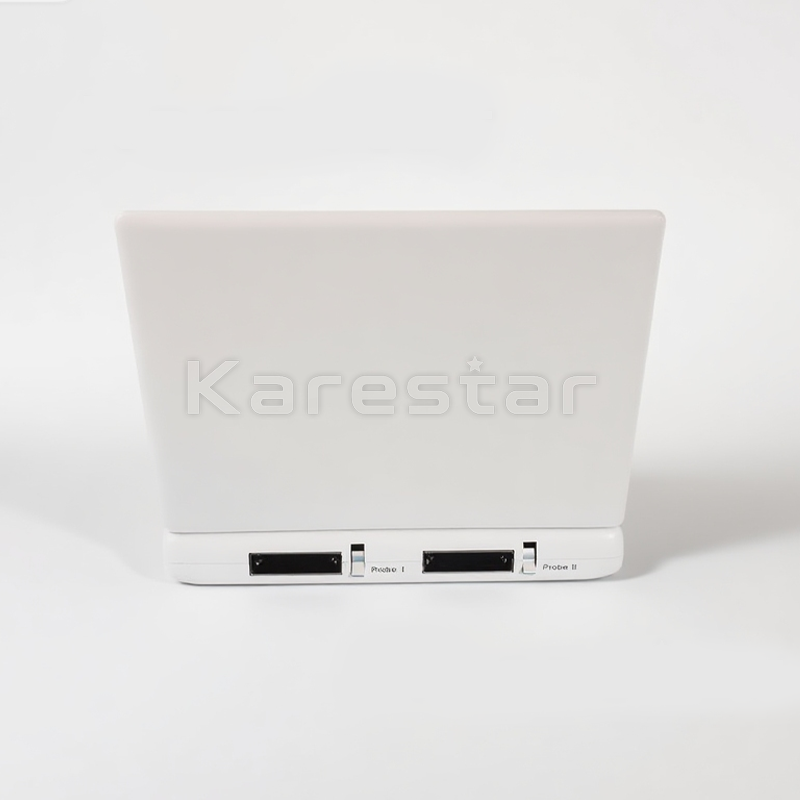

Transducer Ports	2
USB Ports	2
Hard Disc	≥128MB
Ethernet Port	1(100Mb/1000Mb)
External Display	VGA, S-VIDEO,PAL
Printer(Optional)	USB Printer, Digital Laser Printer, Digital B/W Thermal Printer
Printing Area	Image, report, Image+report
DICOM Connectivity	DICOM3.0 Compliant
Image Storage	Storage Format: DICOM Video Format: WMV,MP4 Export Image Format: BMP,JPG,PNG,TIFF,DICOM
Pan/Zoom	Real-Time Image Zoom, Zoom Range: 100%~400%, Up/Down/Left/Right Inversion,Continuously, real-time dynamic PIP
Grey Levels	256
Body Marks	123 types

Technology

One-click Optimization

Spatial Compound Imaging

Speckle Reduction Imaging

Color Quantification

Fine Angle Deflection

Tissue Harmonic Imaging (THI)

Pulse Inversion Harmonic Imaging

Virtual Convex

Patient Information Database

Integrated Hard Disk image Archiving

Real-time Automatic Doppler Calculation

Obstetric Calculation

Fetal Trend

Multiple Pregnancy Calculation

Hip Dysplasia Calculation

Gynecological Calculation

Vascular Calculation

Urological Calculation

Nephrology Calculation

Cardiology Calculation

Vehicle-mounted Editable Report

PW auto Trace

DICOM

Panoramic Imaging Tech

IMT automatic Calculation

External USB Printer Connection

Karestar-Technology-Xuzhou-Co-Ltd- (2)

Karestar-Technology-Xuzhou-Co-Ltd- (1)

Q1: Are you trading company or manufacturer?

A: We are factory which has over 7 years' manufacturing experience.

Q2: Why we find some prices are very high compared with some other suppliers, and from the picture or it's model number, all looks the same?

A: As China is still a developing country, there are only a few products with patent rights, but the copy products spread very fast on the market. Of course, the prices of those copy products is cheaper due to low material, craft and quality control. Anyway, price, quality and service is tightly related.

Q3: What's the MOQ?

A: The MOQ is 1 Set, and samples can be sent for your evaluation.

Q4: How can get the shipping cost?

Please tell us your destination or delivery address, we will check the best Sea Freight or Air Freight for you based on your requirements.

Q5: How long is your delivery time?

A: Usually 3-30 days after order confirmed. Based on the item and quantity.

Q6: Can you do OEM/Private logo/label?

A: Yes, we can do OEM/private logo/label for you. We also have complete facilities and R&D team ready for your service.

Q7: What is your terms of payment?

A: We accept T/T, L/C, Western union, Paypal and more. Please suggest your preferred payment method.

Q8: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q9: How to deal with the faulty?

A: First, our products are produced under in strict quality control system, but if any faulty, we will send new spare partrs for free within warranty year.

Secondly, our after-sales department will periodically follow up customers.

Karestar-Technology-Xuzhou-Co-Ltd-
