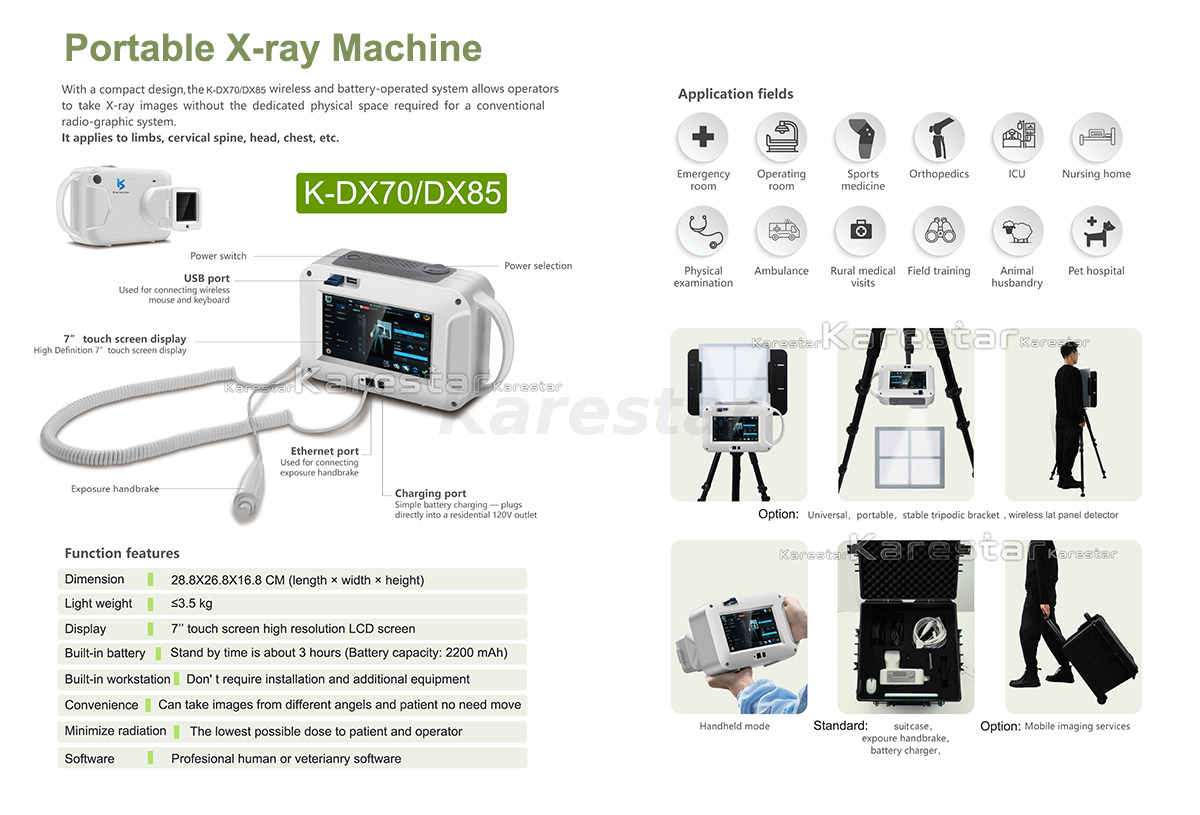

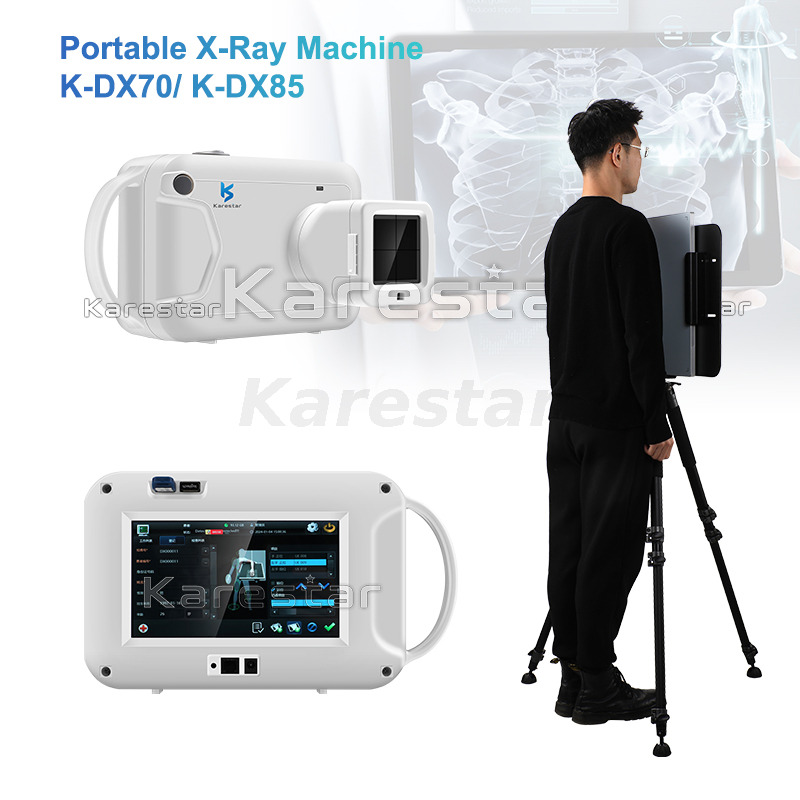

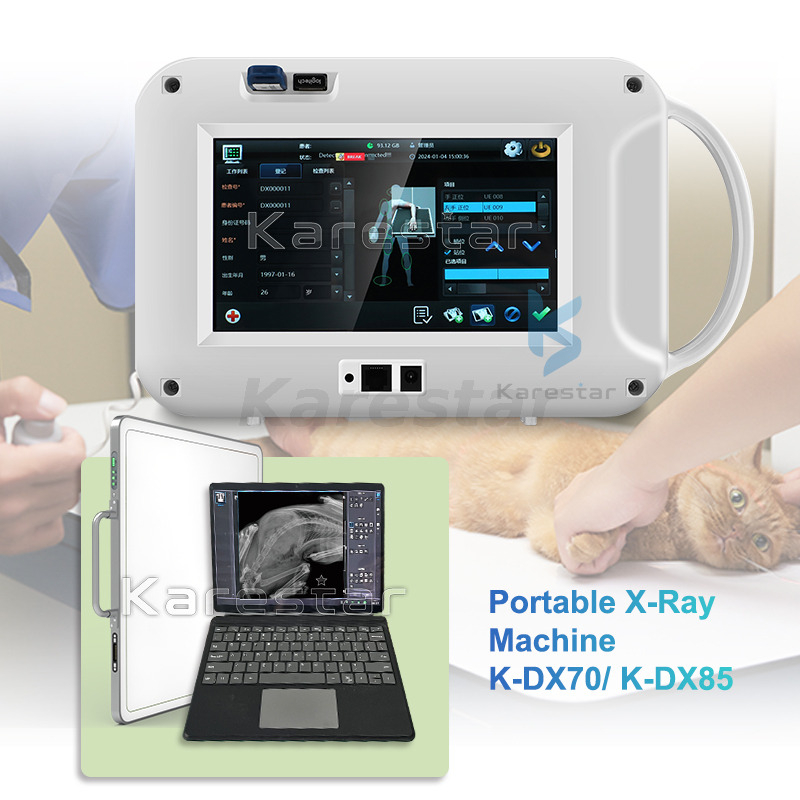

K-DX70/85

With a compact design,the K-DX70/DX85 wireless and battery-operated system allows operators
to take X-ray images without the dedicated physical space required for a conventional
radio-graphic system.
It applies to limbs, cervical spine, head, chest, etc.

Function features
Dimension
28.8X26.8X16.8 CM (length x width xheight)
Light weight
s3.5 kg
Display
7" touch screen high resolution LCD screen
Built-in battery
Stand by time is about 3 hours (Battery capacity:2200 mAh)
Built-in workstation
Don't require installation and additional equipment
Convenience
Can take images from different angels and patient no need move
Minimize radiation
The lowest possible dose to patient and operator
Software
Profesional human or veterianry software

Quantity:
Availability:





Inquire Add to Basket

Model:
K-DX70/85
Brand:
Karestar

Portable X-ray machine Portable DR Portable veterinary DR Portable DR for human use Portable human X-ray machine Portable veterinary X-ray machine

Product Description

0787b32b-8f9e-442d-92e4-229ae2adb6bb Portable X-Ray Diagnosis Machine Digital Scanner Mobile Animal Pet Hospital Veterinary X-ray

593ff4e2-b9b0-4efa-ac31-25d6fa2fc36a

Main feature Quick Outlook

1. 7 inches LCD touch screen

2. 0.6/1.2mm small focus spot Imaging mode

3. DAEC technology ,support more usage application

4. Built-in battery, stand by time is about 3 hours

5. Support DSA module, angiography technology to assist interventional surgery

6. Minimize radiation, the lowest possible dose to patient and operator

7. Measurement function: TPLO, TTA, HD, etc

8. Full function tools and kindly software , easy for operation

9. Can take images from different angles and patient no need move


standard Configuration		Optional Configuration
Main unit + Suitcase	1 pc	Flat detector
AC Adapter	1 pc	Built-in PC workstation
Plug and Cable	1 pc	Tripod
Exposure handbrake	1 pc	Suitcase with wheels
User's manual	1 pc

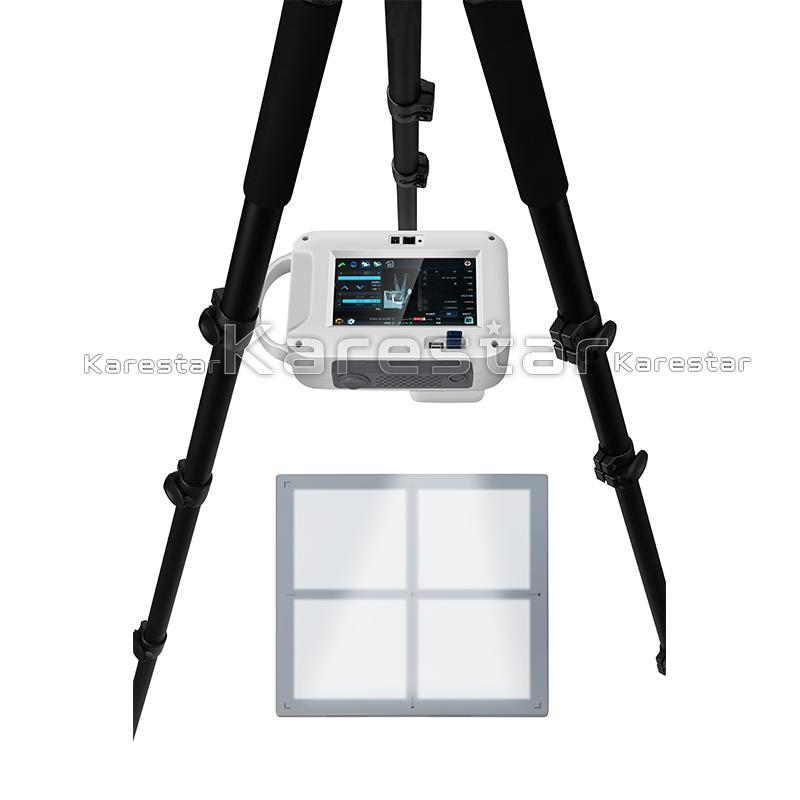

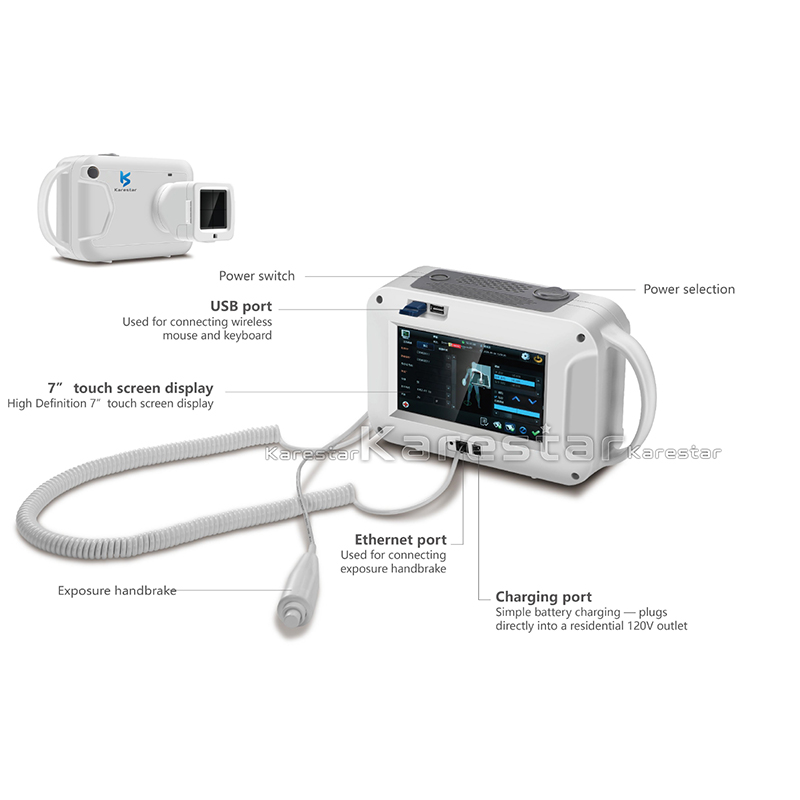

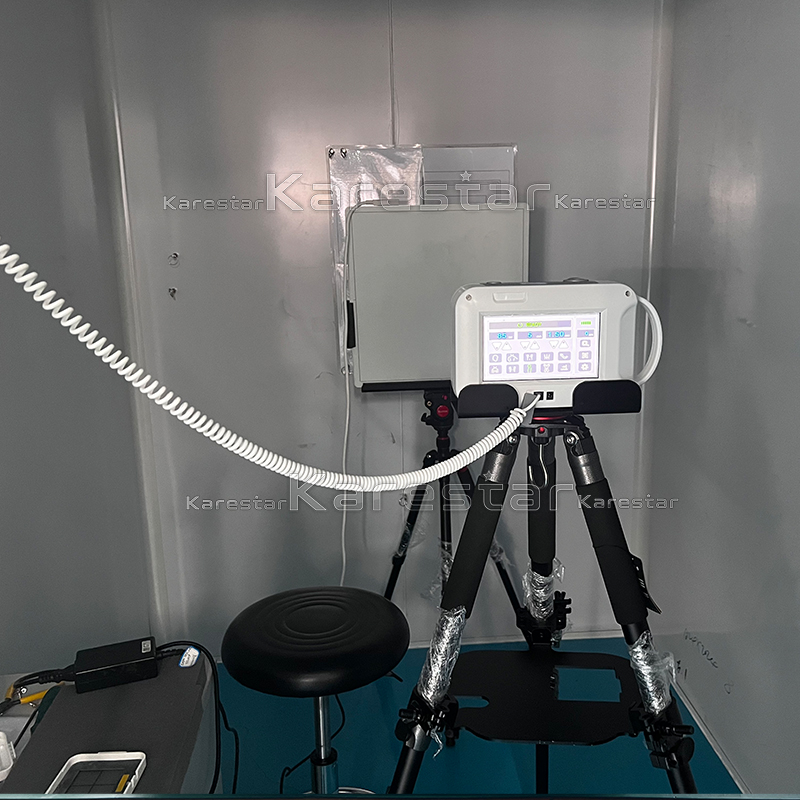

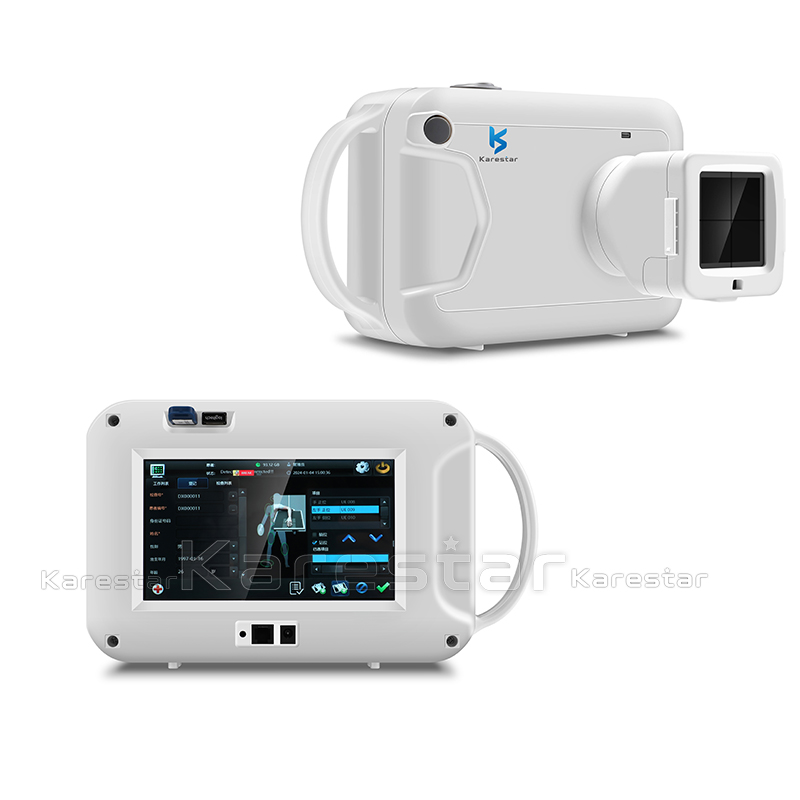

24d64acb-8b73-4e65-9a0e-ca384fb6d171 acbb6e4a-7a2d-447e-9992-b96d2ff0e0d0 e6bae6b4-3a5e-4386-b3bb-c3d5fc705eca 64cd1367-5c48-476c-9970-b2c02cb79fba 4f287068-5dd4-4b2b-ae5c-69a945cfaac5

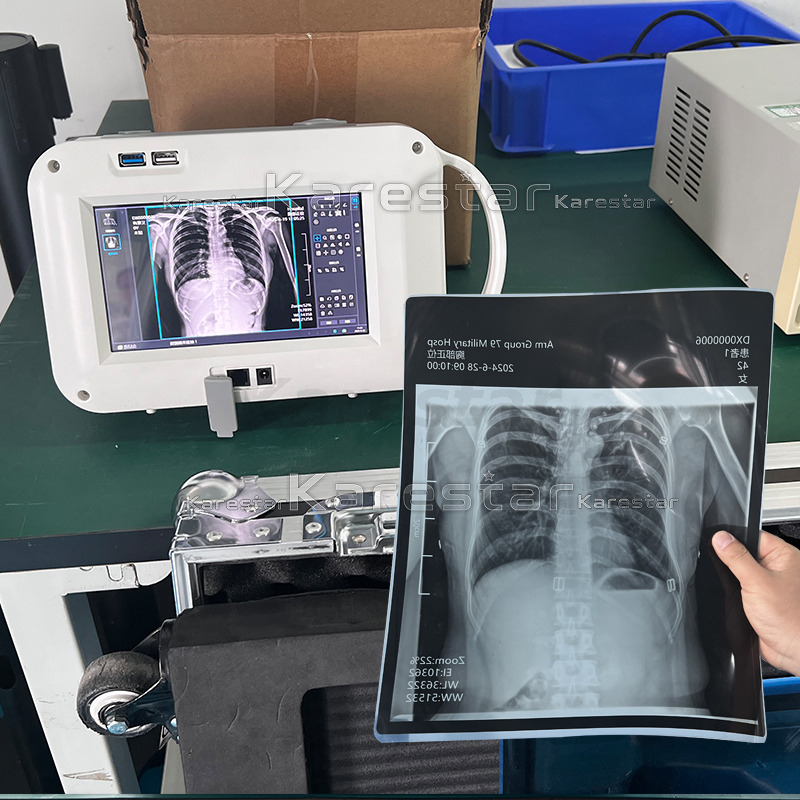

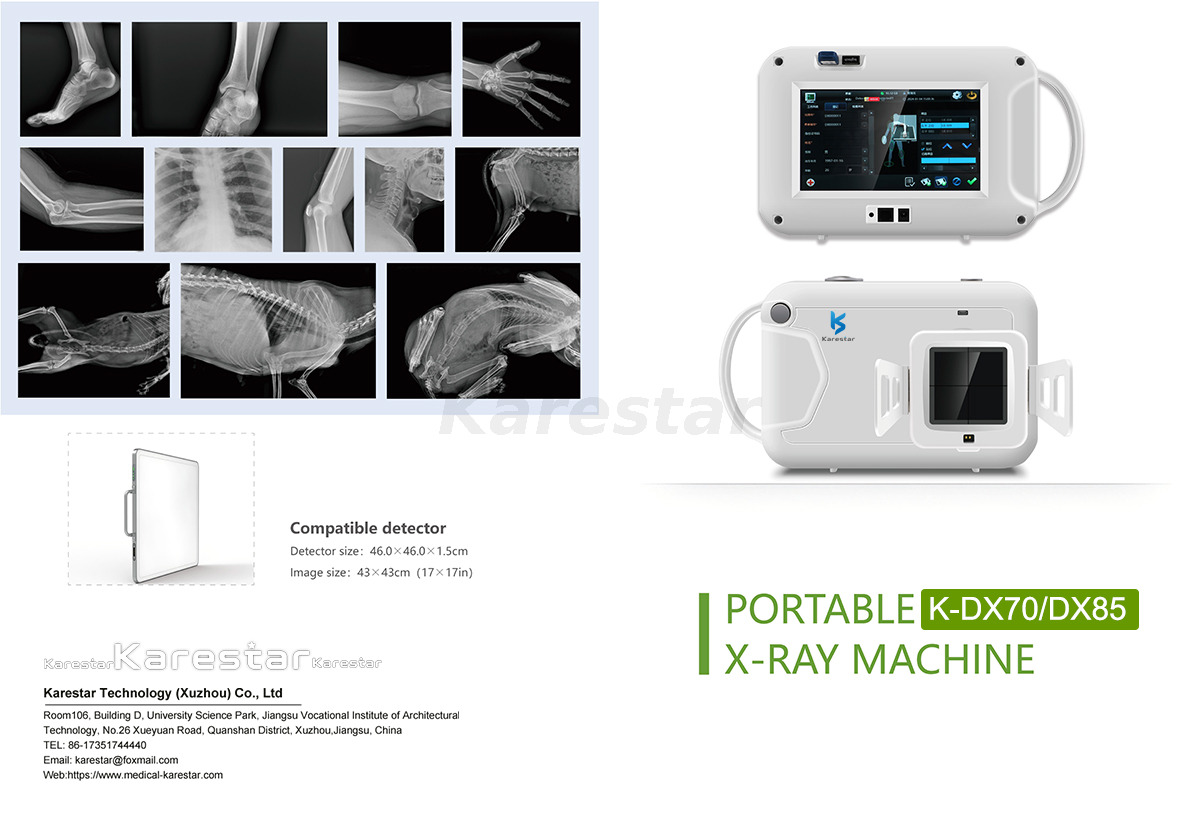

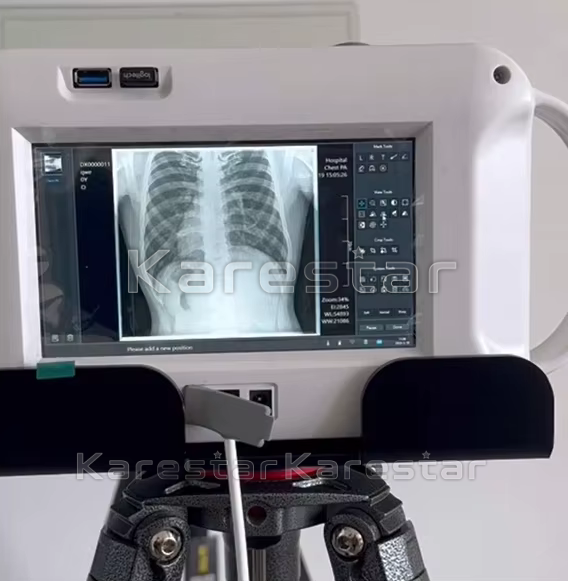

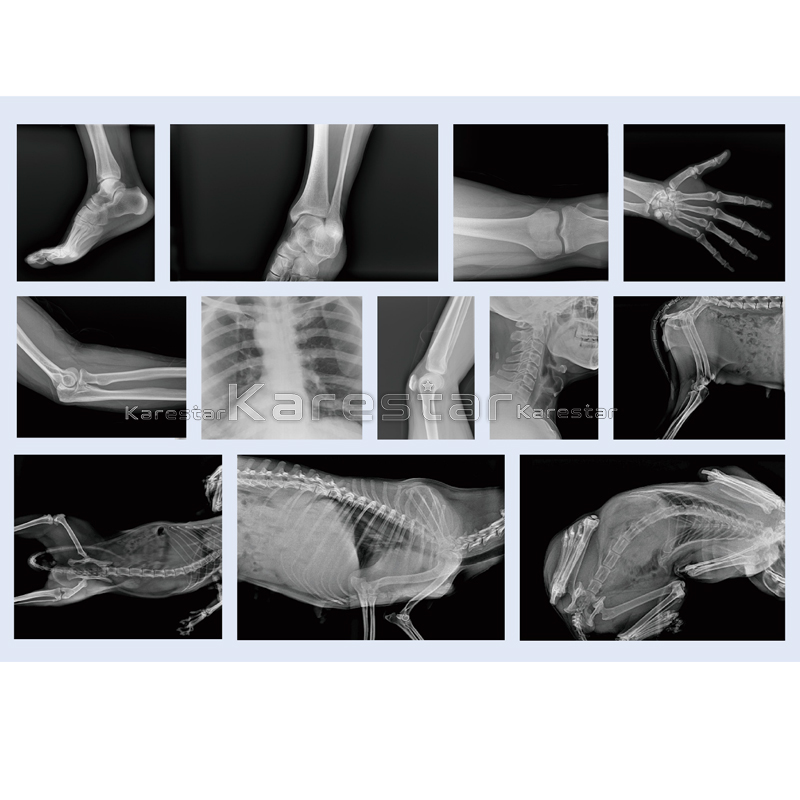

Scanning Image Quality

Specification

Product Name	Portable X Ray Digital Machine
Display	7 inches LCD touch screen
Flat Panel Detector	17*17inches 80% High DQE,3.6Lp
Imaging mode	0.6/1.2mm small focus spot
Output power	50~70KV or 50~85KV
Measurement function	TPLO, TTA, HD, etc
Functions of static DR	High-definition images, advanced measurement functions. Compared with static DR imaging, dynamic DR 30 frames per second, the video smooth without stuttering
Dynamic observation	motor organs (esophagus, lungs, diaphragm, intestine, trachea), orthopedic surgery (joint placement,Change, nail), positioning (foreign body, orthopedic positioning), etc., the use of a wider range of scenarios
Gastrointestinal angiography	esophagus, gastrointestinal peristalsis, emptying

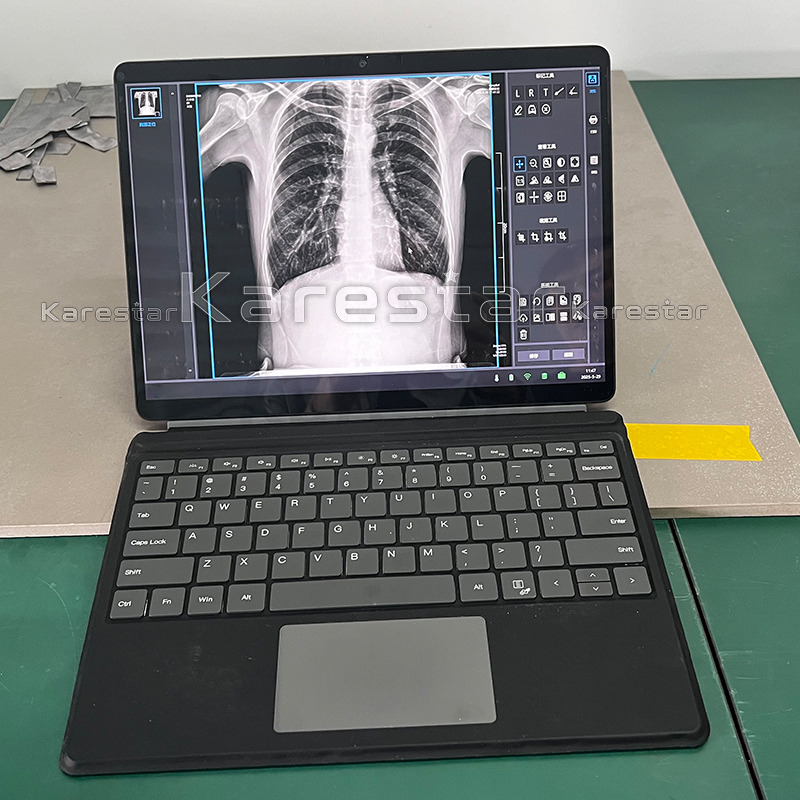

Built-in workstation for option	Don't require installation and additional equipment
Computer set	Intel Dual Core_, Win10 operation system . 1T Hard Disk Drive . 24inches computer screen . 15.6 inches touchable screen in radiation room.
