K-DU70

Warranty：2 Years
After-sale Service：Return and Replacement
Place of Origin：Jiangsu, China
Instrument classification：Class II
Brand Name：Karestar
Model Number：K-DU70
Language：German, Spanish, Portuguese, French, English, Chinese, Russian, Italian
Power Source：Electricity
Type：color doppler ultrasound
Display Type：21.5inch high resolution led color monitor
Application：MSK, OB, Cardiac, Gynecology, vascular, urology, clinic
Shelf Life：2 Years
display mode：Color
Quality Certification：CE
probe：convex probe
Display：21.5 Inch large LED Display+13.3 touch screen
Battery：Build-in lithium battery
Scanning mode：2D, 3D B, B|B, 4B, B|M, M, CFM ,B+CF, PDI, DPDI, THI, Duplex/Triplex
Probe socket：2 probe sockets
Ports：Video, S-video, 2 USB, VGA
Language：Support Spanish, English, French, Portuguese and etc.
Feature：Virtual convex array and Convex array expansion
PW auto trace measurements：Yes
System：PC Platform

Quantity:
Availability:





Inquire Add to Basket

Model:
K-DU70

portable ultrasound scanner ecografo Ultrasound Scanner Ultrasonic-Optical-Electronic-Equipment Medical-Equipment Ultrasound Scanner Medical Handheld ultrasound scanner Medical Scanner Diagnostic Ultrasound portable ultrasound

Product Description

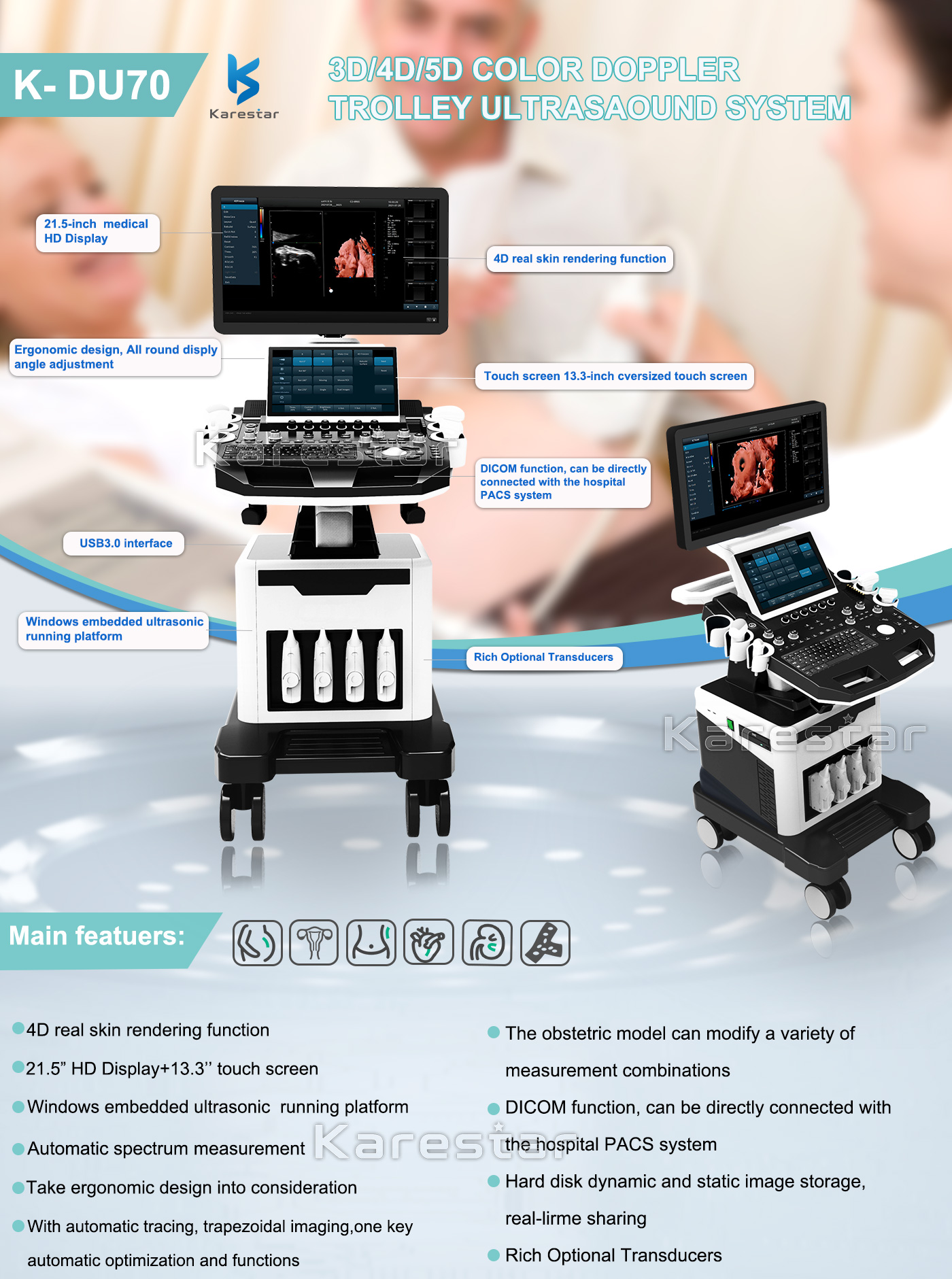

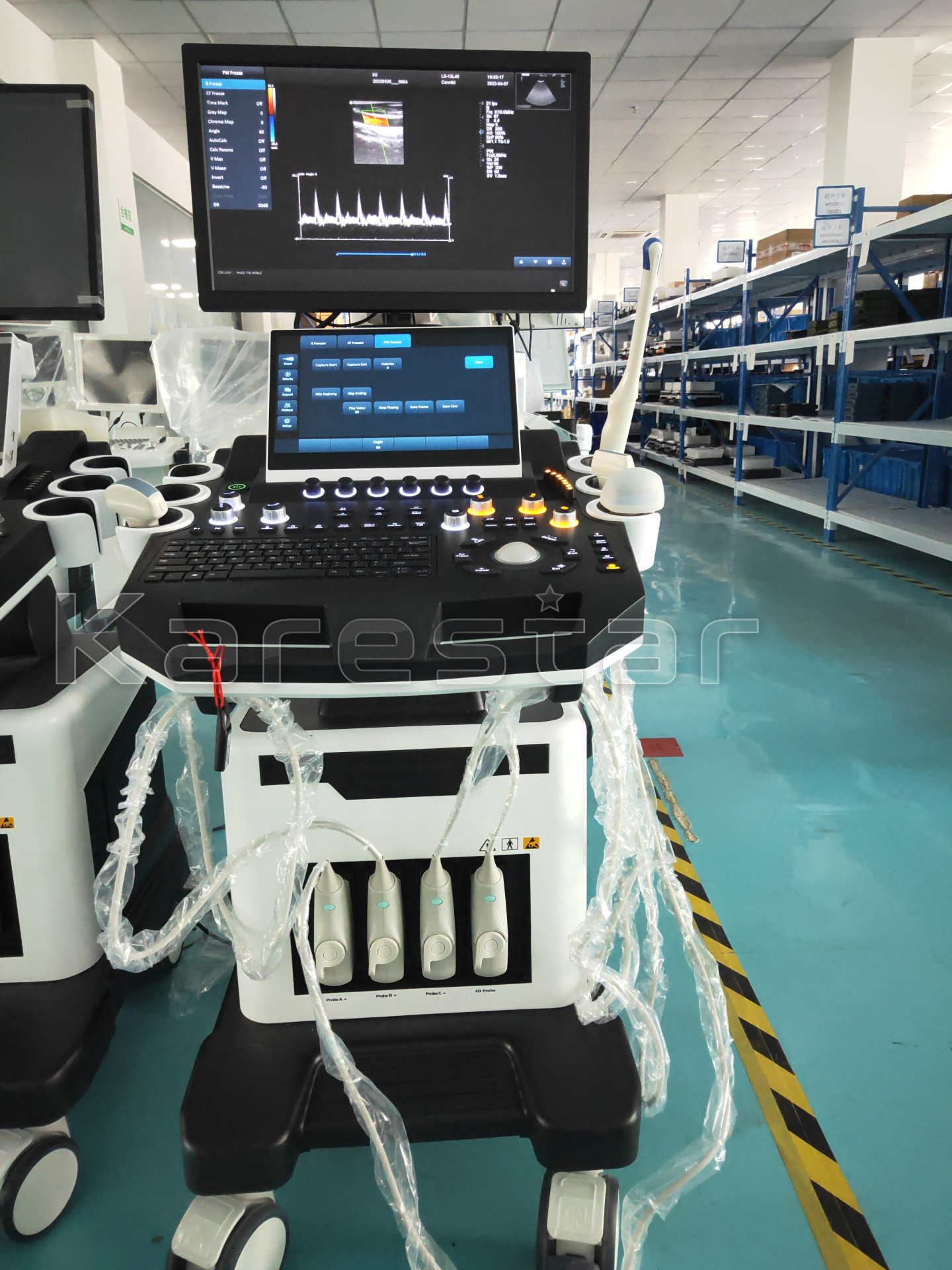

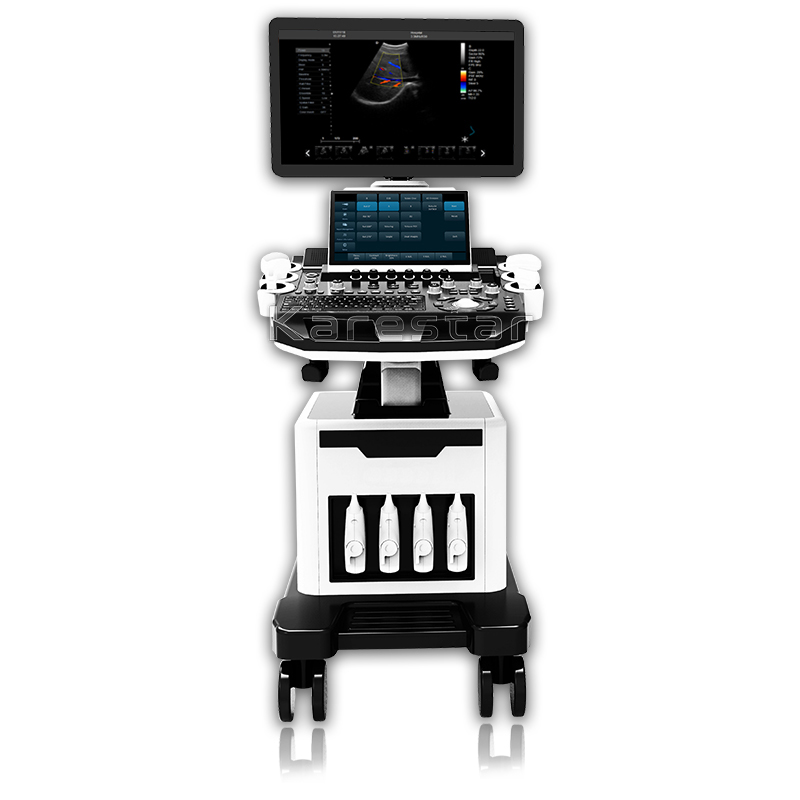

K-DU70 High Quality Hospital Use Trolley All Digital Laptop Ultrasound Machine With USB ports ultrasound machine

Quick Details:

1. Large 21.5 inches LED display+13.3 inches touch screen control

2. Ports: 4 Probe sockets (switch probe easily by one button), 2 USB , Video, S-Video, VGA, DICOM

3. Imaging Modes: B, B|B, 4B, B|M, M, Color Doppler (CFM), Power Doppler (PDI), Directional Power Doppler (DPDI),Pulsed Wave Doppler (PWD), B+PWD (Duplex), B+CF (Triplex)

4.Applications: Abdomen / Cardiac / Obstetrics/ Gynecology /Musculoskeletal /Vascular / Pediatrics /Andrology / Small Parts / Vascular / Pediatrics

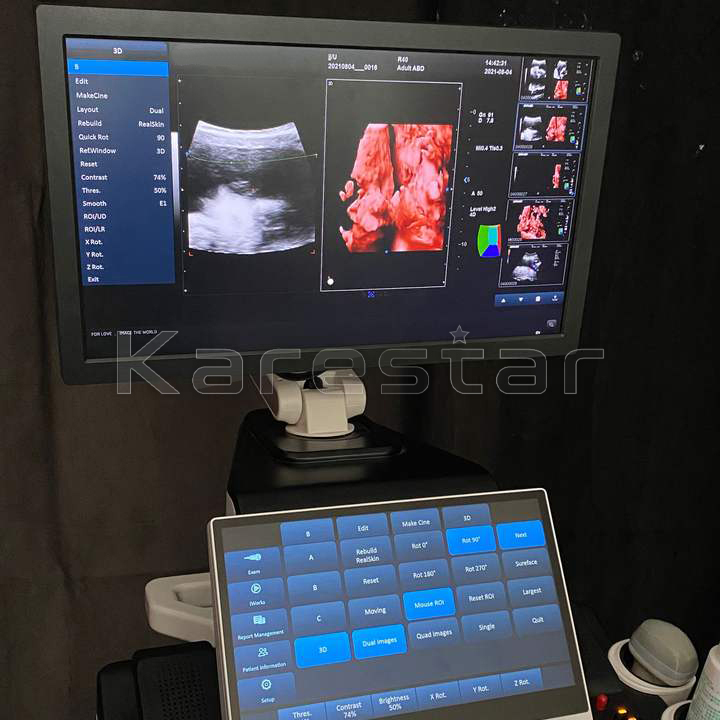

5. Built in 3D software and 4D option

6. PC-based Color Doppler with Windows system and can be compatible with any printer

7.Support multi-languages

Specification

Application

Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics / Musculoskeletal

Transducer Ports	4
USB Ports	2
Hard Disc	64GB (SSD), 120G/200GB SSD (Optional)
Ethernet Port	2(100Mb/1000Mb)
External Display	VGA, S-VIDEO,HDM
Printer(Optional)	USB Printer, Digital Laser Printer, Digital B/W Thermal Printer
Printing Area	Image, report, Image+report
DICOM Connectivity	DICOM3.0 Compliant
Image Storage	Storage Format: PNG, AVI, BMP, JPEG, DICOM Export Video Format: AVI Export Image Format: PNG, JPEG, BMP, DICOM USB Flash Drive
Pan/Zoom	Real-Time Image Zoom, Zoom Range: 100%~400%, Up/Down/Left/Right Inversion,Continuously, real-time dynamic PIP
Grey Levels	256
Body Marks	123 types

Technology

Panoramic Imaging Tech

All-digital signal processing Tech

Multi-beam formation Tech

Speckle Reduction Tech

Tissue Harmonic Imaging Tech

Dynamic Tissue Optimization Tech

Duplex & Triplex Synchronous Display

Power Doppler (PDI)+Directional Power Doppler (DPDI)

Imaging Parameters Preset

Tissue Special Image

PW Auto Trace

Update in line

CF+B mode in one screen

Complex Model Imaging

IMT auto measurements

Virtual convex array

Trapezoidal imaging

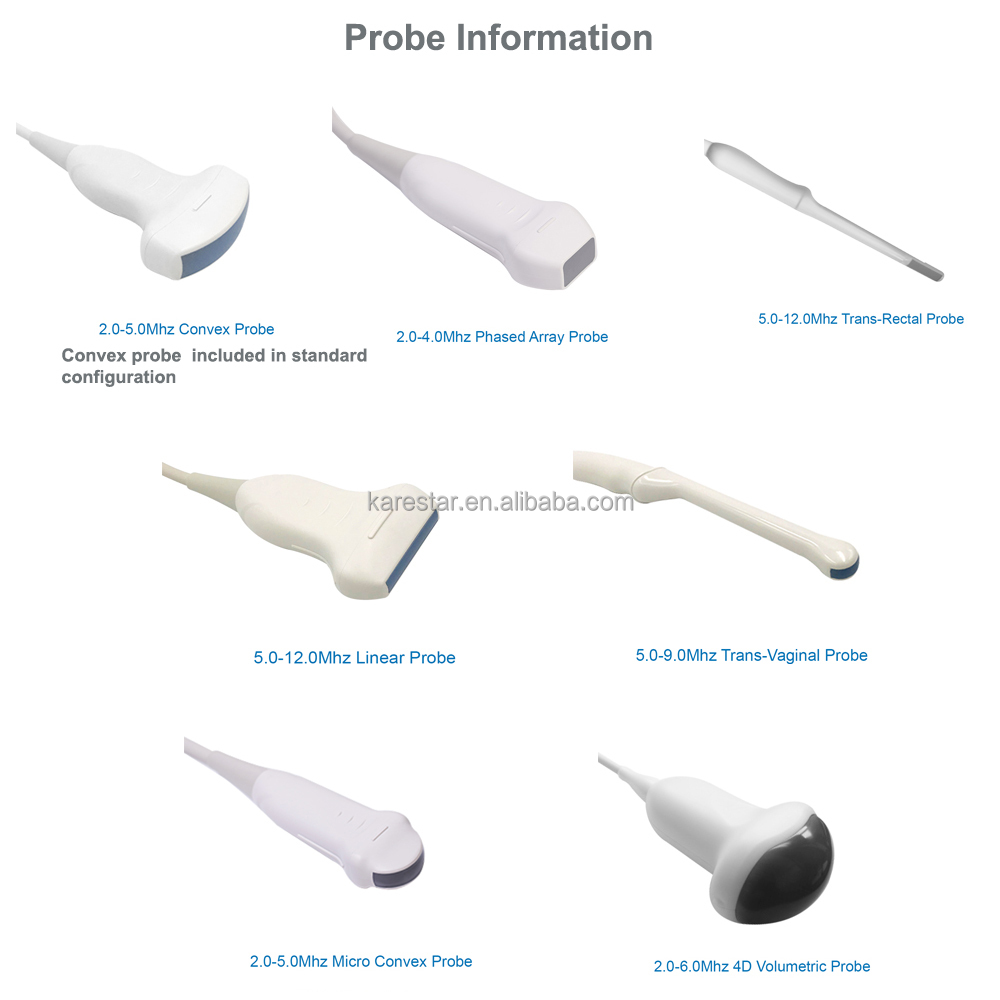

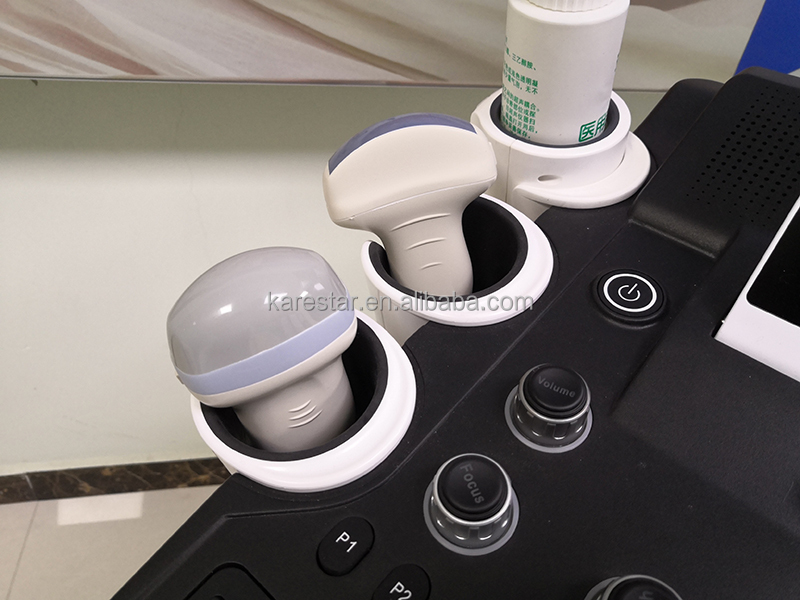

Probe	Convex Array Probe	Linear Array Probe	Trans-Vaginal Probe	Micro-convex probe
Frequency	Central 3.5 MHz (2.0MHZ to 10.0MHZ)	Central 7.5 MHz (6.0MHZ to 12.0MHZ)	Central 6.5 MHz (5.0MHZ to 9.0MHZ)	Central 4.0 MHz (2.0MHZ to 5.5MHZ)
Pitch	0.516mm	0.352mm	0.216mm	N/A
Radius	60mm	N/A	10 mm	N/A
Elements	128	128	128	128
