K-H303

Model NO.:：K-H303
Scale：Medium
Display：15 Inch HD Display

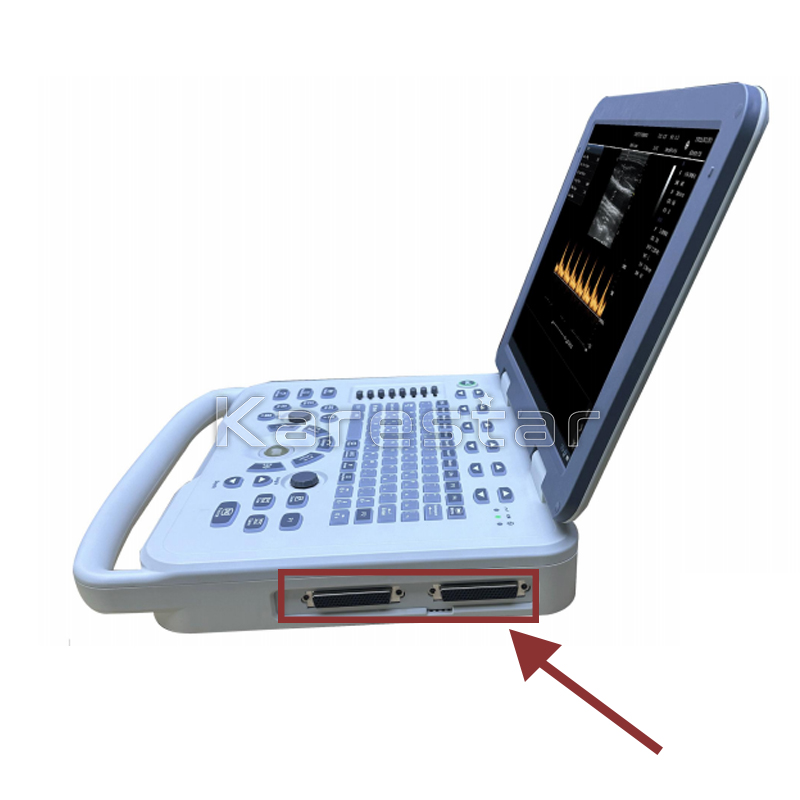

Probe Socket：2 Probe Sockets
Battery：Build-in Lithium Battery Can Work for 4 Hours
Scanning Mode：B, B|B, 4b, B|M, M,PW;
Application：Abdomen / Cardiac / Obstetrics / Gynecology / Urol
HD Imaging：Yes
Quality Certification：CE
Interface：Video, 2 USB, VGA, Dicom3.0
Language：English, French, Portuguese, Russian and etc.
Operation System：Linux
Imt Automatic Measurement：Yes
Guide Line of Biopsy Puncture：Support
Pseudo Color：16 Kinds
Gray Scale：256 Levels
Editable Report：Yes
Transport Package：Carton Boxes
Trademark：Karestar
Origin：Jiangsu, China

Quantity:
Size:	46×46×22cm 5.5kg
Availability:





Inquire Add to Basket

Model:
K-H303
Brand:
Karestar

Portable Ultracound Scanner Vet Portable Ultrasound Machine B/W Ultrasound Scanner Ultrasonic-Optical-Electronic-Equipment Medical-Equipment ecografo Handheld ultrasound scanner Diagnostic Ultrasound portable ultrasound Ultrasound Scanner Medical

Product Description

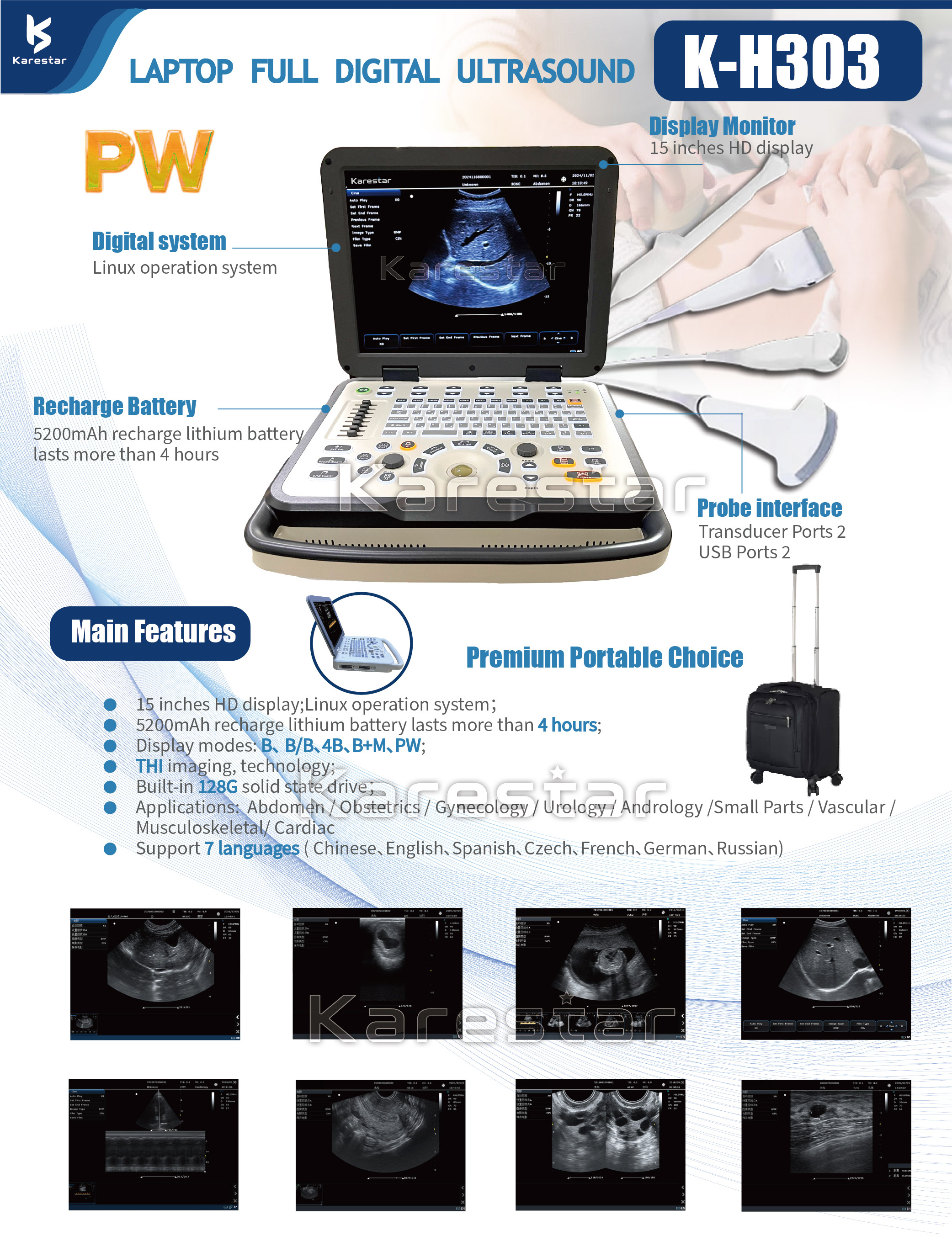

Quick Details:

1.15 inches HD display; Linux operation system;
2.5200mAh recharge lithium battery lasts more than 4 hours;
3.Display modes: B,B/B,4B,B+M,PW;
4. THl imaging, technology;
5.Built-in 128G solid state drive;
6.Applications:Abdomen/Obstetrics/Gynecology /Urology/Andrology /Small Parts /Vascular/Musculoskeletal/ Cardiac

7.Support 7 languages (Chinese,English,Spanish,Czech,French,German,Russian)Can be easily extended to support other languages

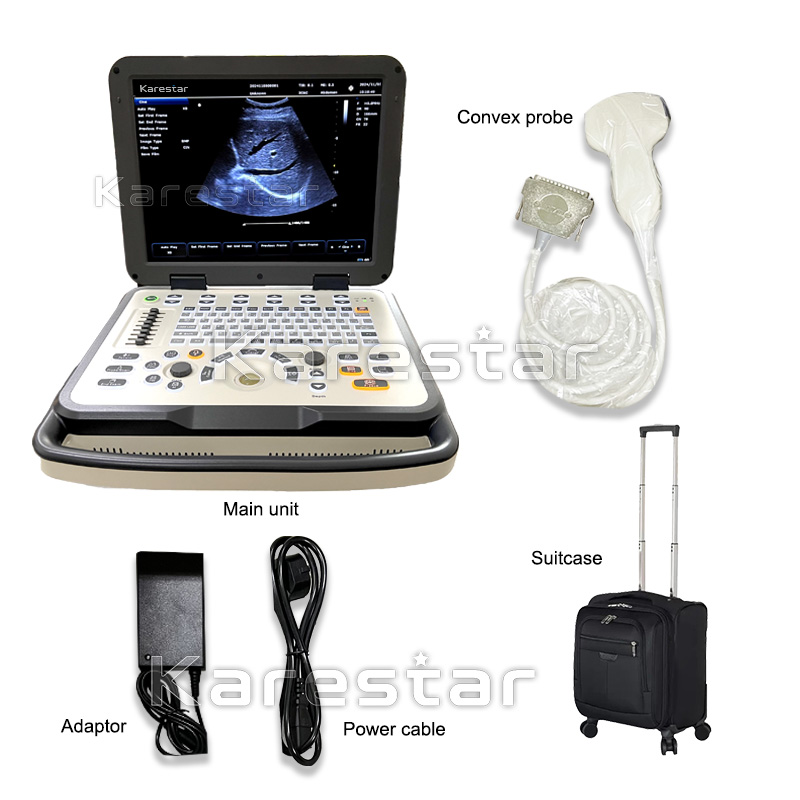

Standard Configuration		Optional configuration
15 inches main unit+2 probe connectors	1pc	Optional probes
3.5MHz convex probe	1pc	Portable carrying bag
Suitcase	1pc	Trolley
AC Adapter	1pc
Pulg and cable	1pc
User's manual	1pc

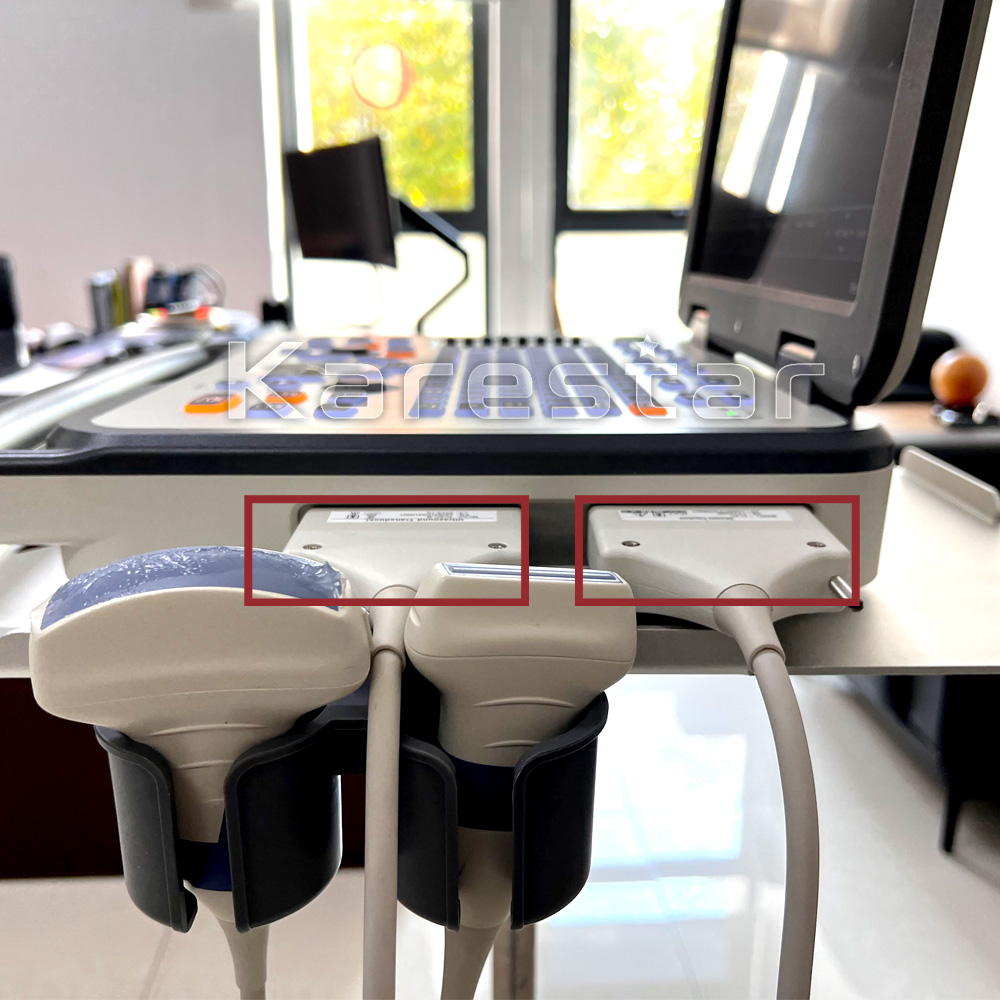

222

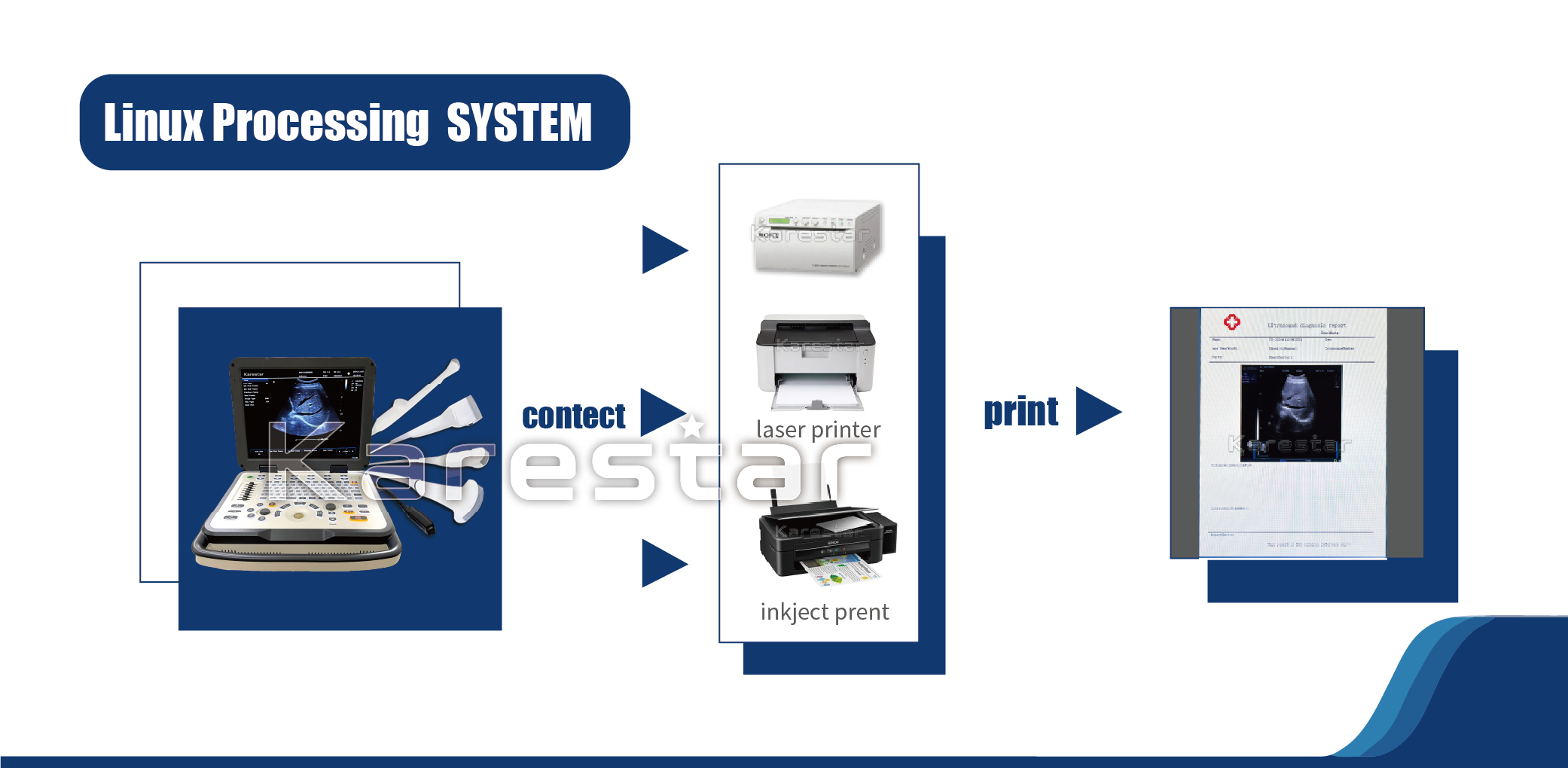

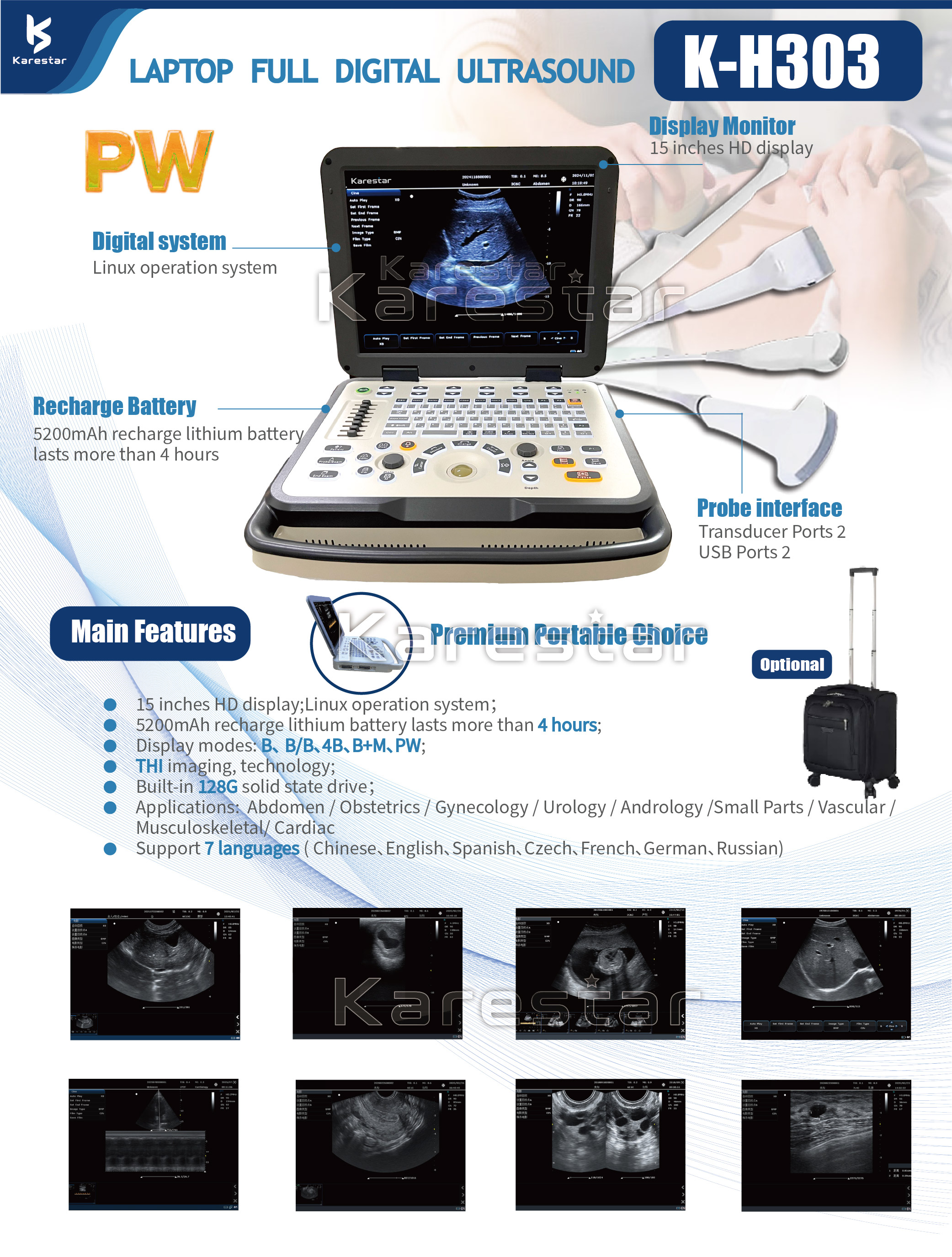

K-H303 VET彩页-01-02

人用探头

Probe	Convex Array Probe	Linear Array Probe	Trans-Vaginal Probe	Micro-convex probe
Frequency	Central 3.5 MHz (2.0MHZ to 10.0MHZ)	Central 7.5 MHz (6.0MHZ to 10.0MHZ)	Central 6.5 MHz (5.0MHZ to 9.0MHZ)	Central 4.0 MHz (2.0MHZ to 5.5MHZ)
Pitch	0.516mm	0.352mm	0.216mm	N/A
Radius	60mm	N/A	10 mm	N/A
Elements	96	96	96	96

Application

Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics / Musculoskeletal

Physical Specifications

Equipment size365mm×365mm×75mm

Equipment weightLess than 5.5kg

Transducer Ports	2
USB Ports	2
Battery Capacity :	5200 mAh can work more than 4 hours
Hard Disc	Built-in 128G solid state drive ,make the storage safer and more reliable, 256GB SSD (Optional)which offers long-term storage for a range of data types,including videos,images,reports,case files,and more
Ethernet Port	2(100Mb/1000Mb)
External Display	VGA, S-VIDEO
Focus position	Dynamic electron focusing
Frequency conversion	2MHz~12MHz (depend on probe type)
Grey Levels	256
Dynamic range	80~280dB adjustable
Processing technology	Rich image processing technology, for instance frames average, view angle,edge enhance, Gamma ,etc
Function of puncture	Support guide line of biopsy puncture
Printer(Optional)	USB Printer, Digital Laser Printer, Digital B/W Thermal Printer
Printing Area	Image, report, Image+report
Image storage	CIN,FRM, BMP, JPEG, DICOM,AVI,USB Flash Drive
Pan/Zoom	Real-Time Image Zoom, Zoom Range: 100%~400%, Up/Down/Left/Right Inversion

Technology

All-digital signal processing Tech

Multi-beam formation Tech

Speckle Reduction Tech

Tissue Harmonic Imaging Tech

Dynamic Tissue Optimization Tech

Imaging Parameters Preset

Tissue Special Image

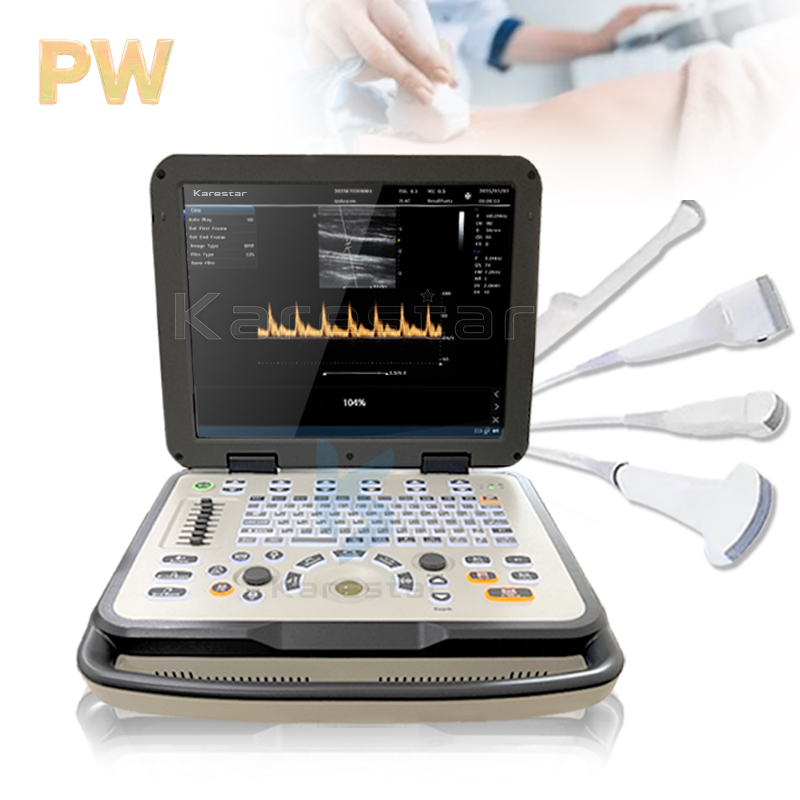

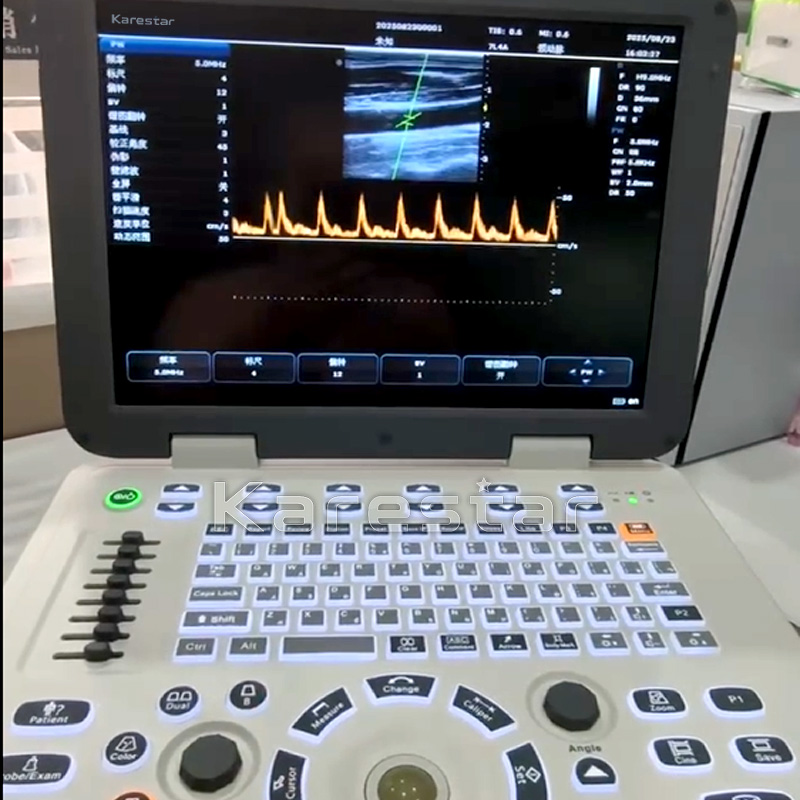

PW Function

Update in line

Other option:

*Printer

*Carrying bag

*Trolly

Karestar-Technology-Xuzhou-Co-Ltd- (2)

Karestar-Technology-Xuzhou-Co-Ltd- (1)

Q1: Are you trading company or manufacturer?

A: We are factory which has over 7 years' manufacturing experience.

Q2: Why we find some prices are very high compared with some other suppliers, and from the picture or it's model number, all looks the same?

A: As China is still a developing country, there are only a few products with patent rights, but the copy products spread very fast on the market. Of course, the prices of those copy products is cheaper due to low material, craft and quality control. Anyway, price, quality and service is tightly related.

Q3: What's the MOQ?

A: The MOQ is 1 Set, and samples can be sent for your evaluation.

Q4: How can get the shipping cost?

Please tell us your destination or delivery address, we will check the best Sea Freight or Air Freight for you based on your requirements.

Q5: How long is your delivery time?

A: Usually 3-30 days after order confirmed. Based on the item and quantity.

Q6: Can you do OEM/Private logo/label?

A: Yes, we can do OEM/private logo/label for you. We also have complete facilities and R&D team ready for your service.

Q7: What is your terms of payment?

A: We accept T/T, L/C, Western union, Paypal and more. Please suggest your preferred payment method.

Q8: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q9: How to deal with the faulty?

A: First, our products are produced under in strict quality control system, but if any faulty, we will send new spare partrs for free within warranty year.

Secondly, our after-sales department will periodically follow up customers.
