K-TCX300

Model NO.: K-TCX300
Scanning Depth: Adjustabl
Field of View: Convex R60, Phasedarray R80, Linear L40
Screen:iOSs/Android/Windows Screen
Supporting System: iOS, Android, Windows
Display Mode: B, B/M, Color, Pdi, Pw
Image Adjustmen: Gain, Focus, Reverse Pulse Harmonics, Noise Reduct
Battery Working Time: 2 Hours
Size: 156mmx60mmx20mm
Net Weight: 200 Gram
Playback: Manual and Automatic
Dynamic Range: 40/50/60/70/80/90/100/110
Image Gray Scale: 256 Level
Image Frame Rate: 18 Frames/Second
Transport Package: Carton
Specification: 24X18X9 cm
Trademark: Karestar
Origin: Jiangsu, China

Quantity:
Availability:





Inquire Add to Basket

Model:
K-TCX300
Brand:
Karestar

Ecografo Portatil Interchangeable Color Doppler Ultrasound wireless ultrasound probe Ultrasound Scanner wireless probe ultrasound WiFi Wireless Ultrasound Wireless Probe Portable Ultrasound machine Digital Ultrasound Machine Light USG Machine

Product Description

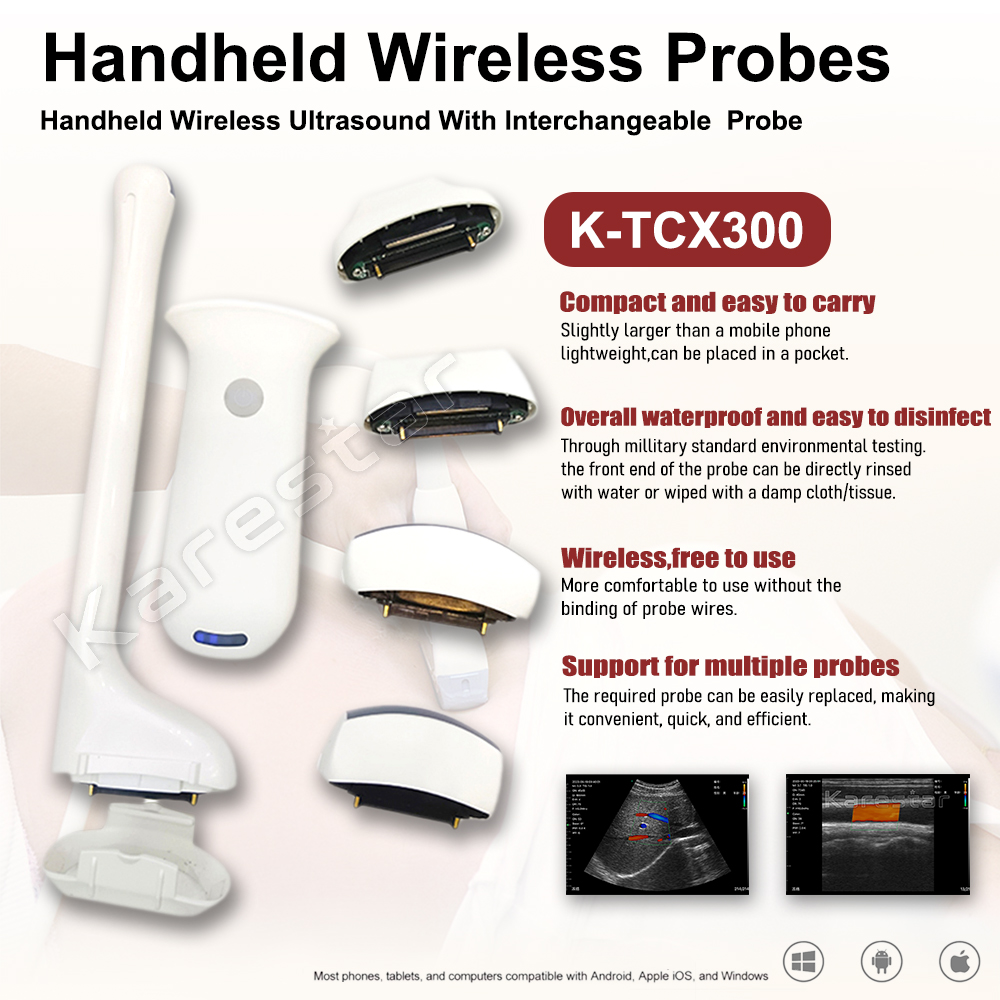

0787b32b-8f9e-442d-92e4-229ae2adb6bb Handheld Wireless Doppler Ultrasound With Interchangeable Probes K-TCX300

Quick Details:

1. Display mode:B, B/M, Color, PDI, PW
2. F requency: C onvex/Phased array 3.2/5.0MHz or 3.2/4.0MHz, Linear probe 7.5/10MHz or 10/13.2MHz,

Transvaginal 6.6/8.0

3. Scanning Depth: Convex 90/160/220/305mm, Linear 20/40/60/100mm, Transvaginal 20/40/60/100, adjustable

4. Field of view: Convex R60, Phasedarray R80, Linear L40
5. Battery working time: 2 hour

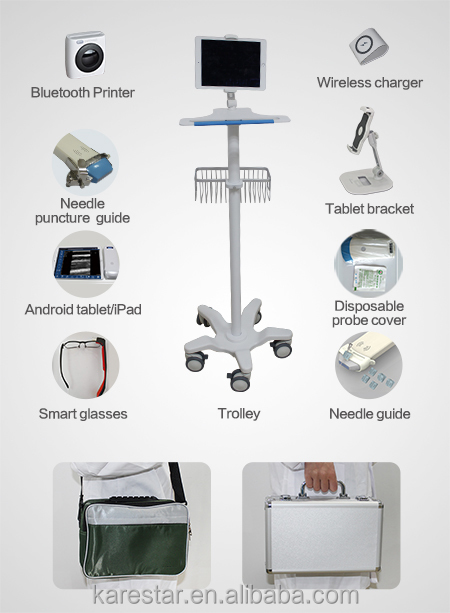

Standard Configuration		Optional Items
	Wireless probe device		Stainless steel puncture guide
	Built-in Battery and charge cable		Android or iOS phone/tablet
	User Manual copy		Opotional Interchangeable Probe
			Tablet bracket
			Trolley

27354839-e9b3-4625-a9b6-86a8480ad65e 98e9be9d-df83-4407-9cfc-a1af33b45373 06355675-535d-4b34-87f1-521bb4298590 ab91d472-2833-49f6-a280-3f6296797d61

Standard Configuration		Optional Configuration
Main machine	1	Mobile Stand
Charging cable and adapter	1	Table Stand
Aluminum Carrying Case	1
User's manual	1
Calibration card	1
Warranty card	1
Surgical skin pen	1
A tourniquet	1

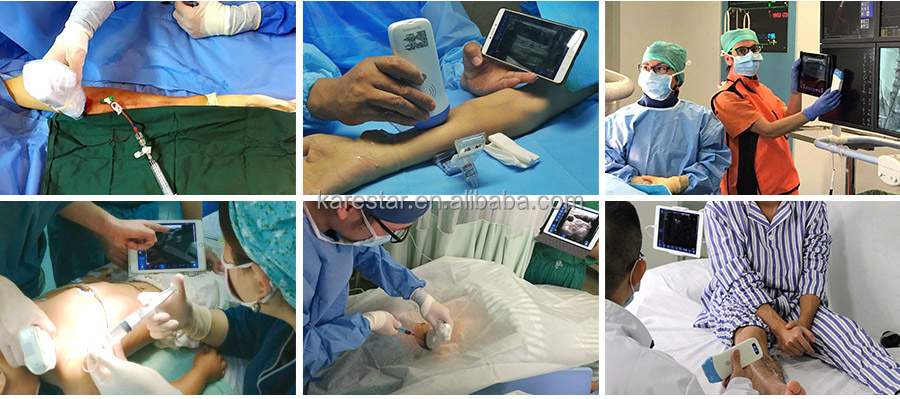

Application Directions

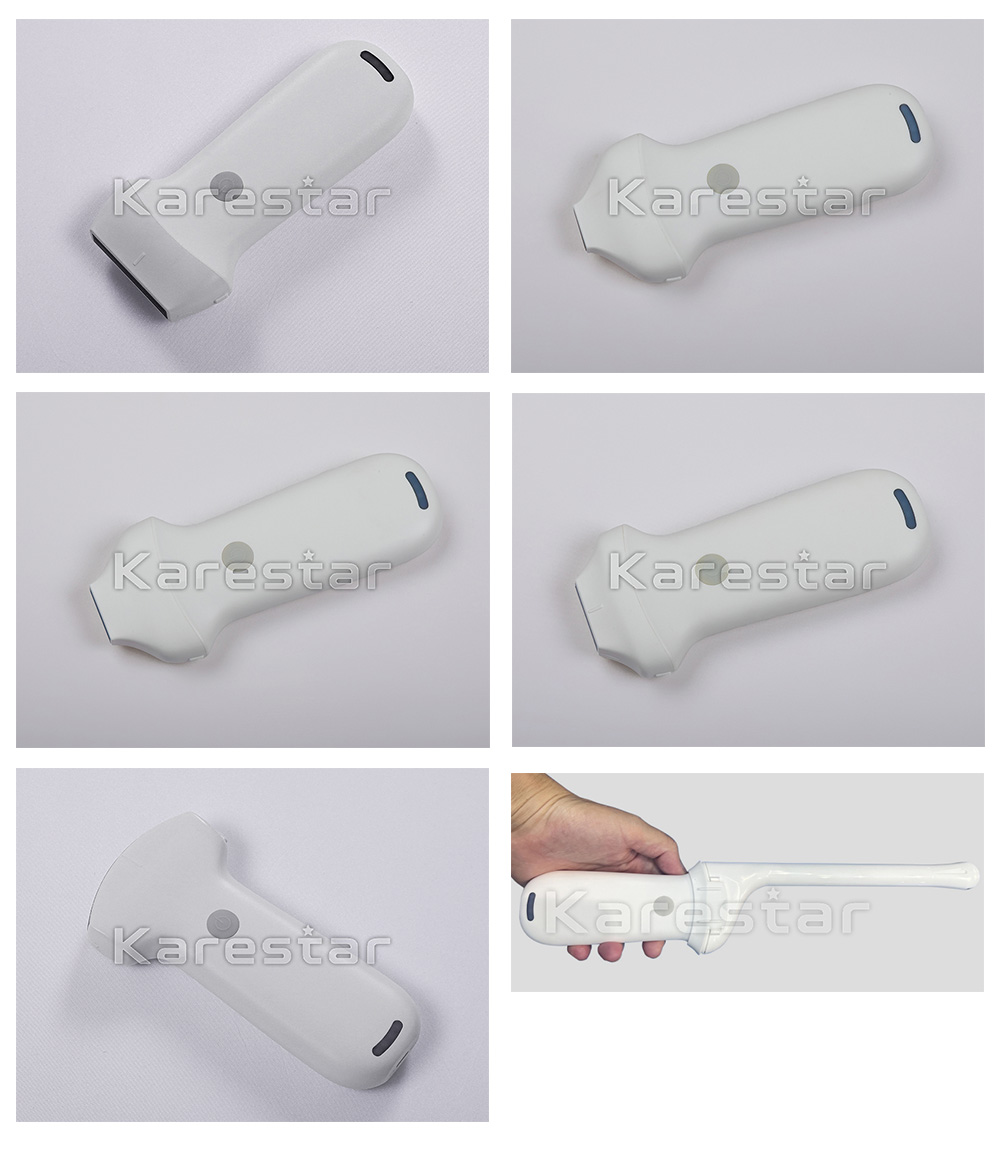

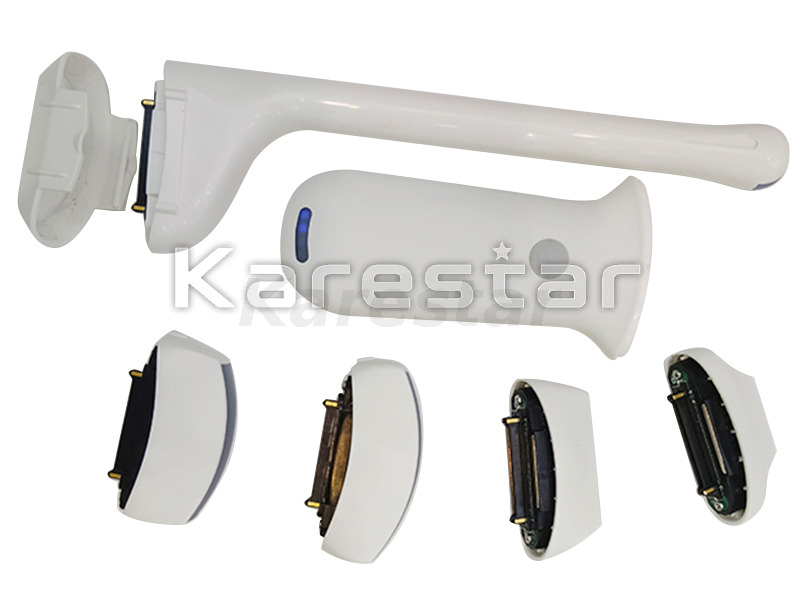

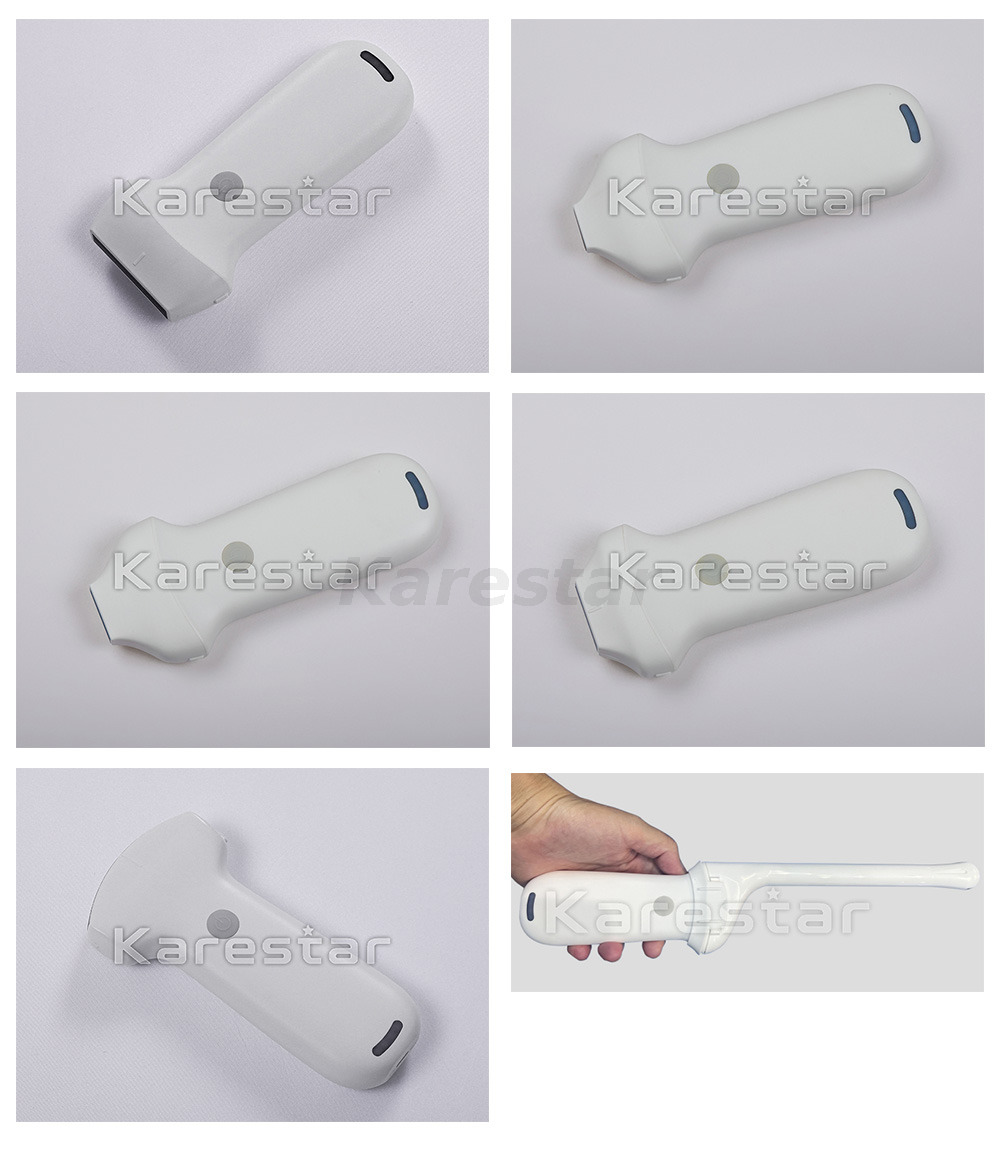

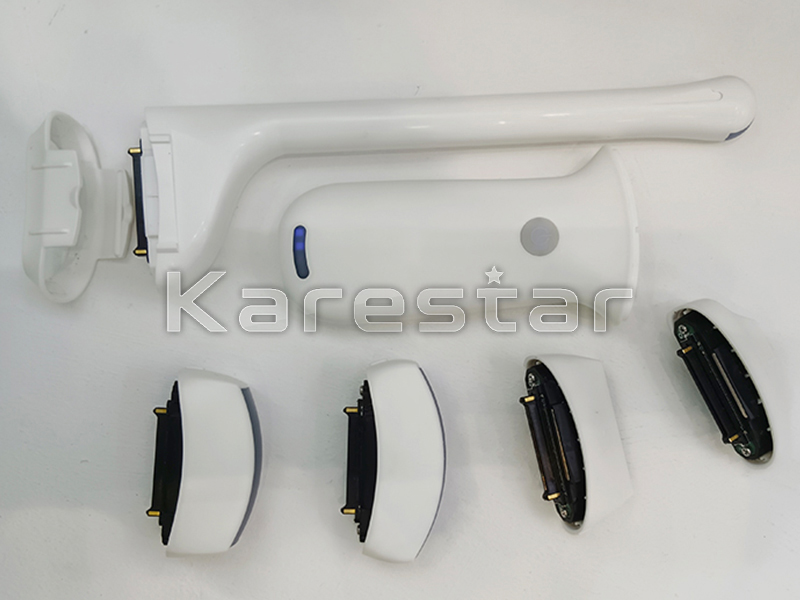

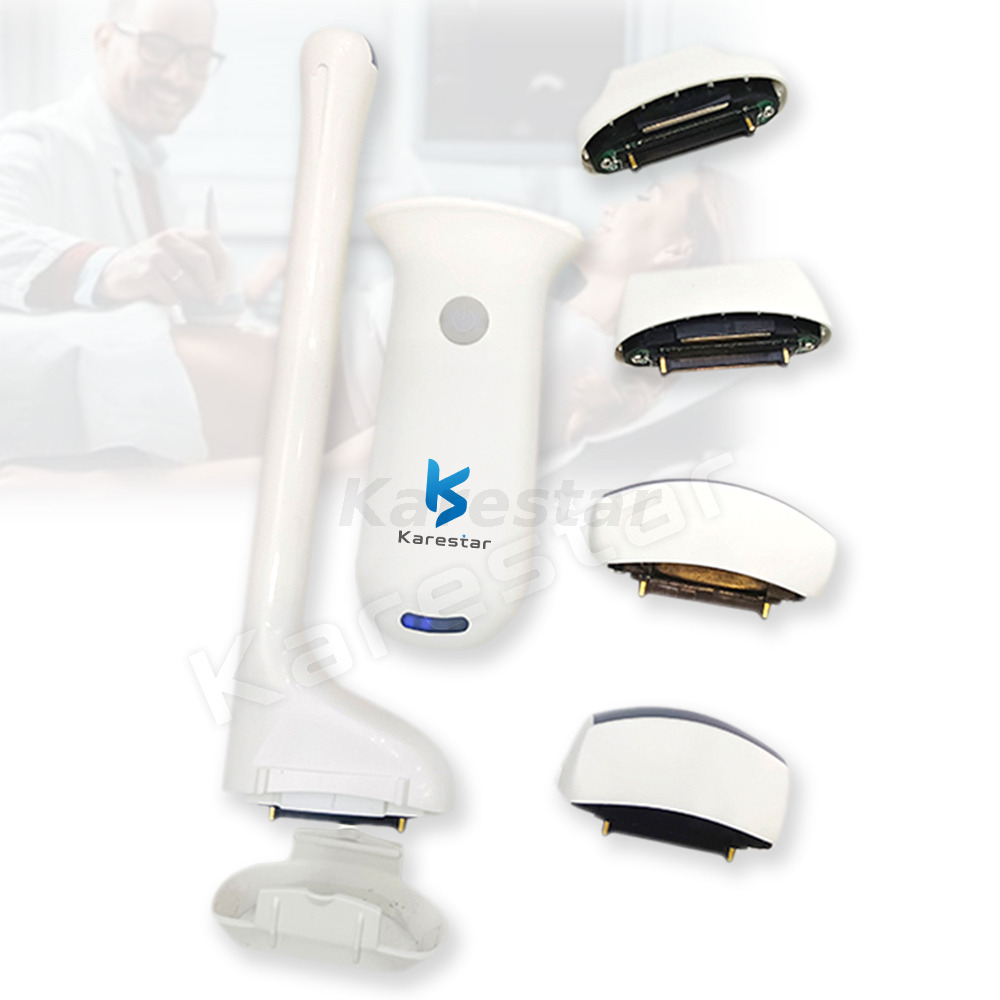

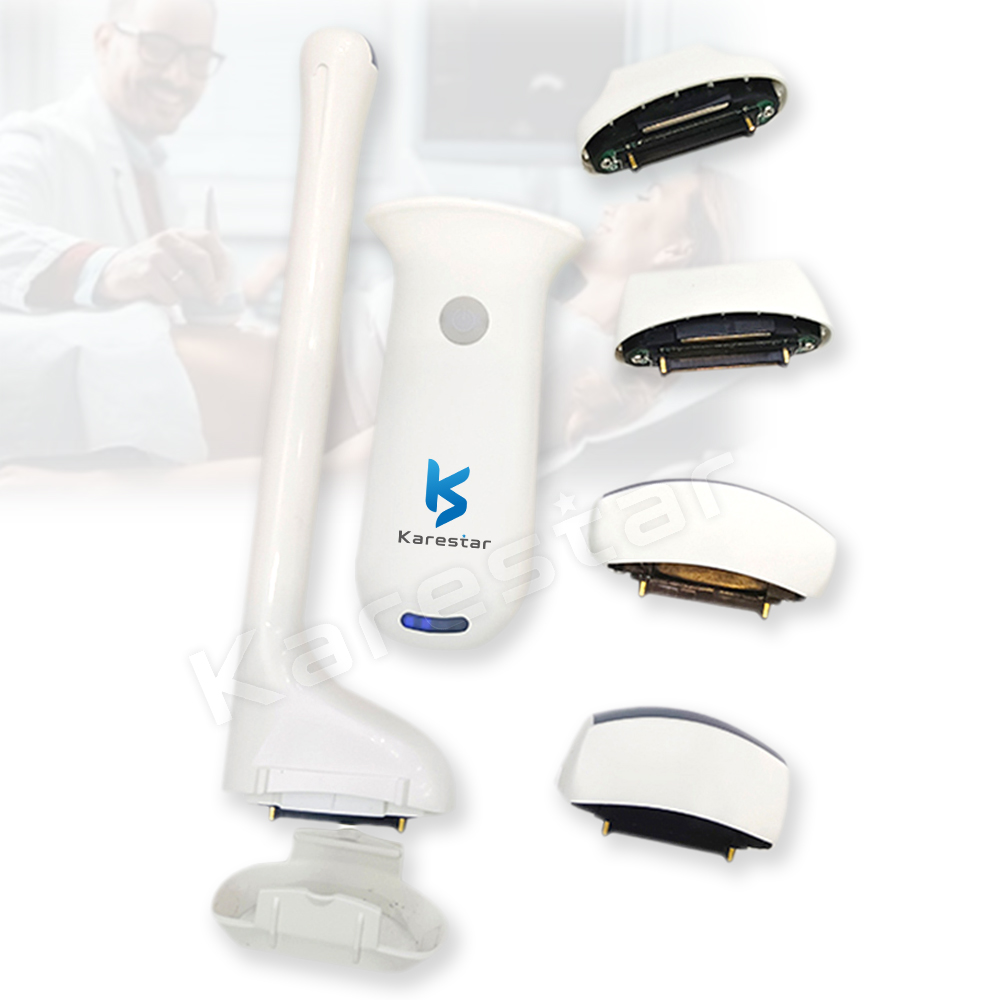

Handheld Wireless Doppler Ultrasound with Interchangeable Probes K-Tcx300

Working Principle

Our wireless probe is a mini ultrasound scanner without a screen.

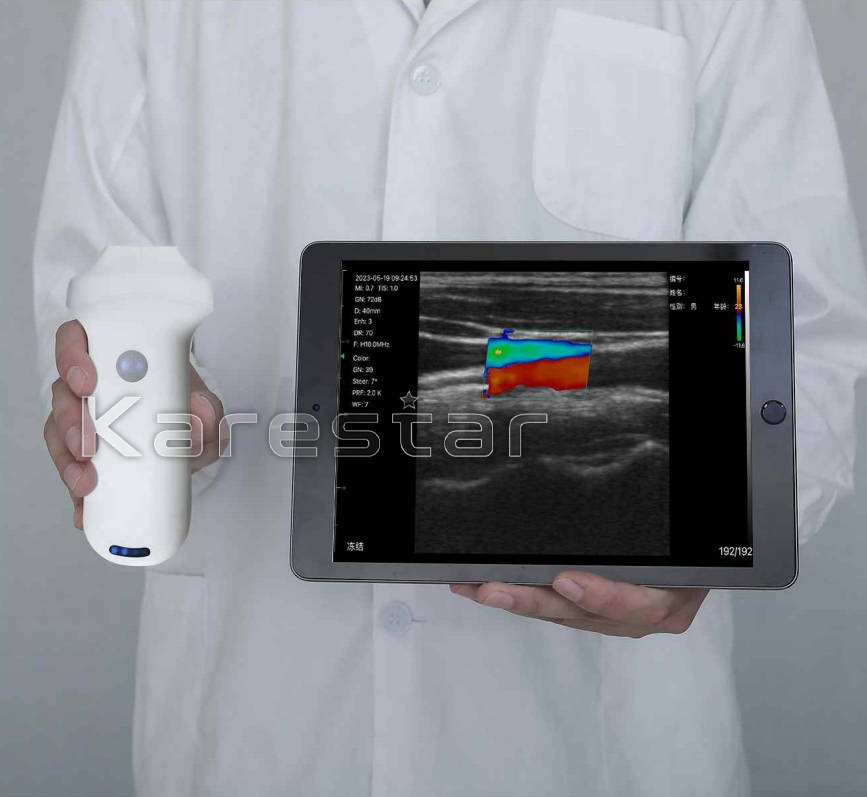

We minimize the components of a traditional ultrasound into a small circuit board built into the probe, and showing image in smart phone/tablet through Wifi transferring. The image can both show in screen and tablet. Image transferring through internal wifi from probe, no need external Wifi signal.

Scanning mode	Electronic Array, Electronic Convex & Linear array scanning

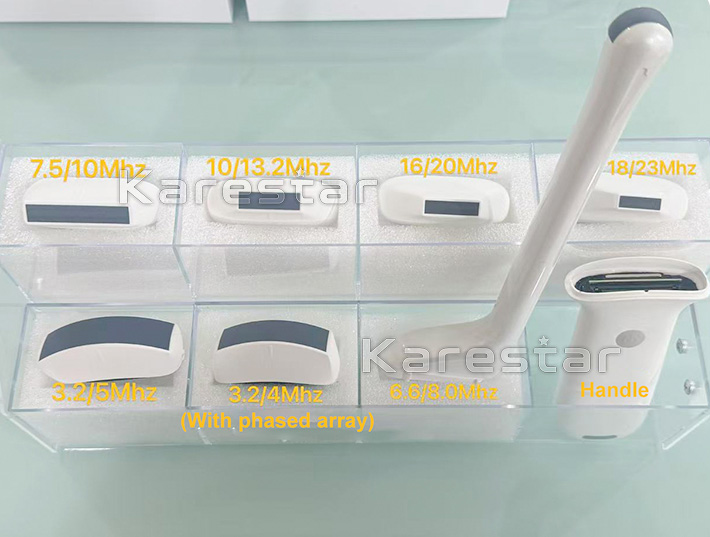

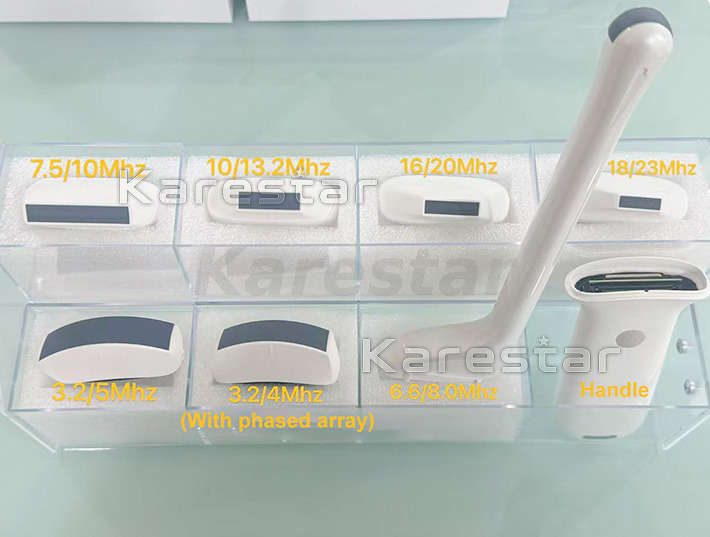

Frequency	Convex/Phasedarray 3.2/5.0MHz or 3.2/4.0MHz, Linear probe 7.5/10MHz or 10/13.2MHz,Transvaginal 6.6/8.0
Scanning Depth	Convex 90/160/220/305mm, Linear 20/40/60/100mm, Transvaginal 20/40/60/100, adjustable
Field of view	Convex R60, Phasedarray R80, Linear L40

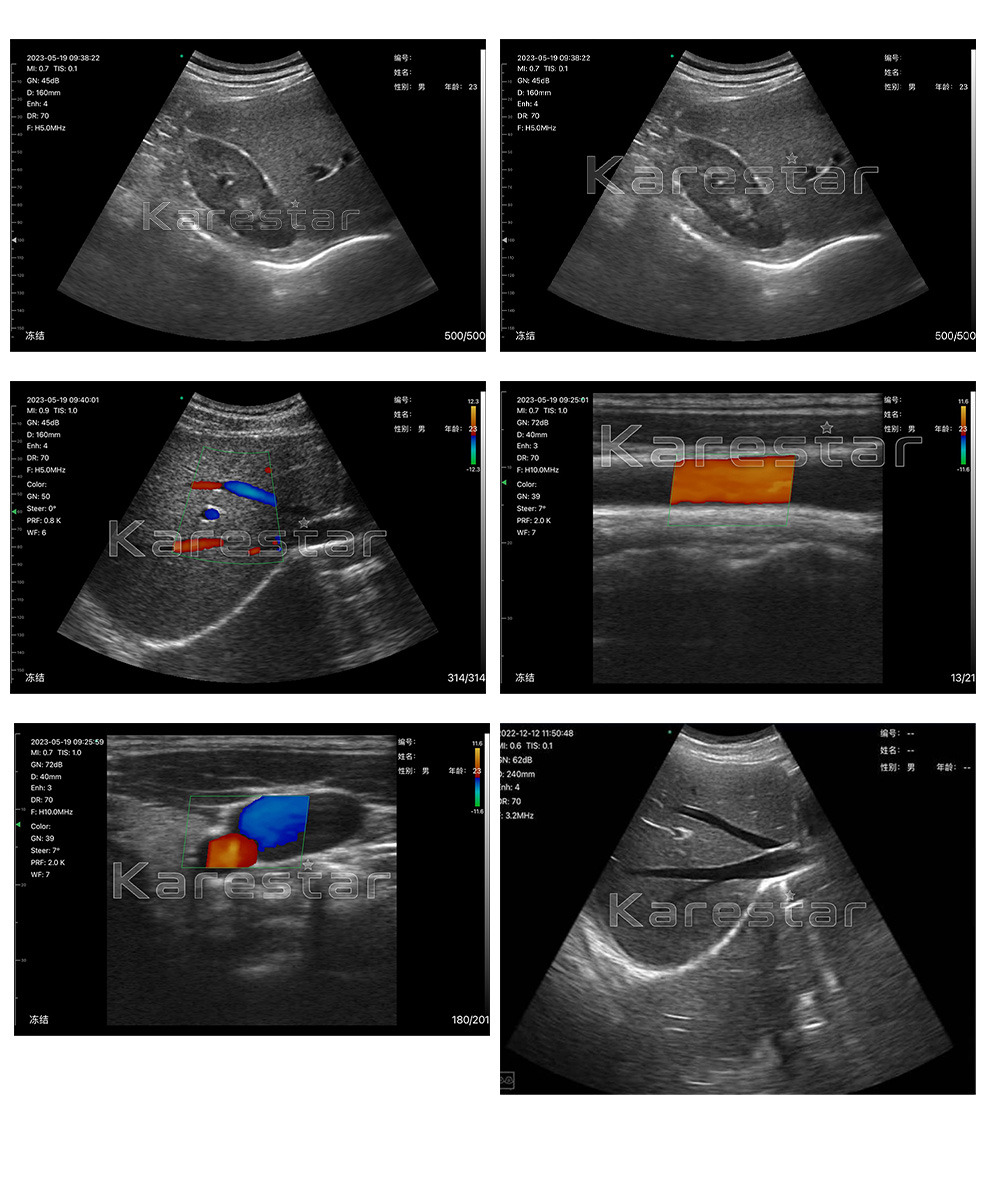

Display mode	B, B/M, Color, PDI, PW: Linear array COLOR mode Convex Array COLOR Mode Convex array PW mode Cardiac COLOR mode Cardiac PW mode Linear array PW mode
Image Adjustment	Gain, focus, reverse pulse harmonics, noise reduction
Puncture Auxliary Function	In-Plane puncture guide,Out-Plane puncture guide, automatic vascular measurement function
Power	By built-in lithium battery,2800mAh,wireless charging can extend the working time indefinitely
Battery working time	2 hours
Playback	Manual and automatic, playback frames to be 10o/20o/500/1000
Image gray scale	256 level
Dynamic Range	40/50/60/70/80/90/100/110
Image/Video Storage	jpg, png mp4 and DCM
WiFi Type	802.11n/2.4G/5G dual-band 450Mbps
Size	156mmx60mmx20mm
Net Weight	200 gram
