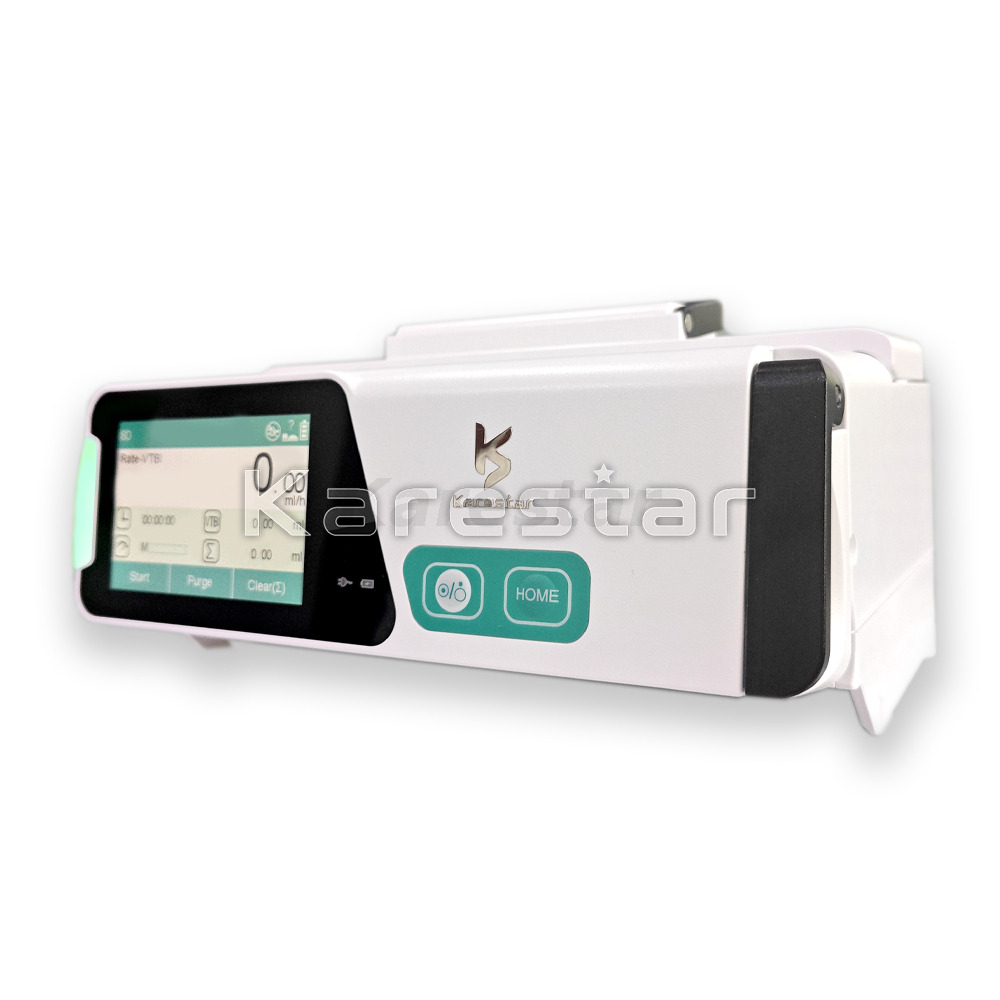

K-DIP15

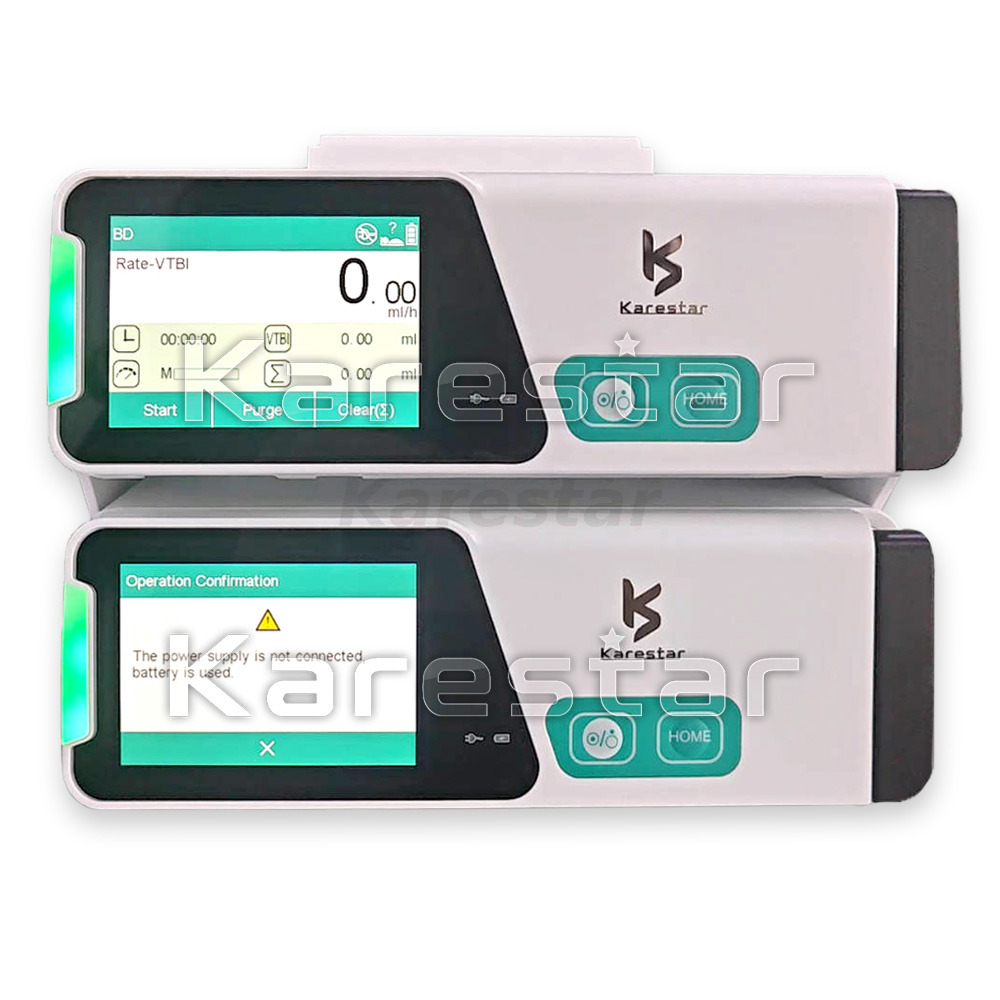

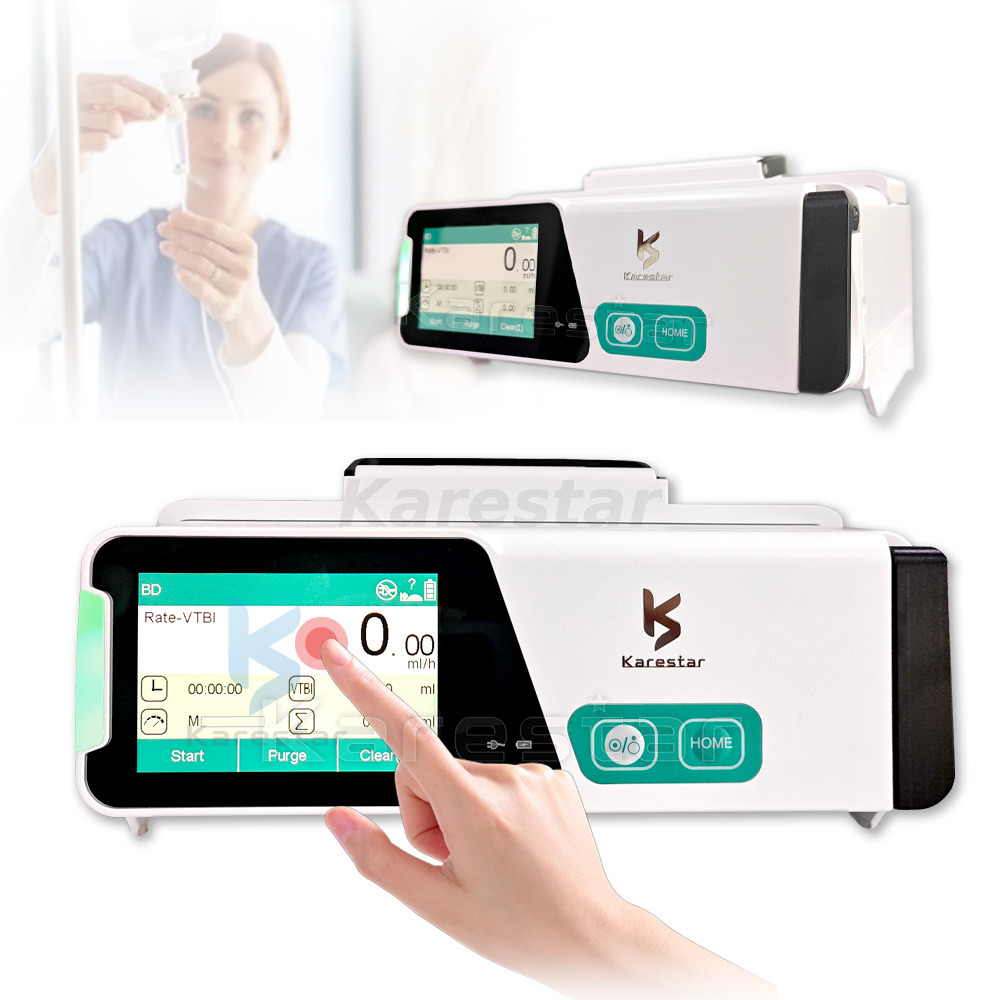

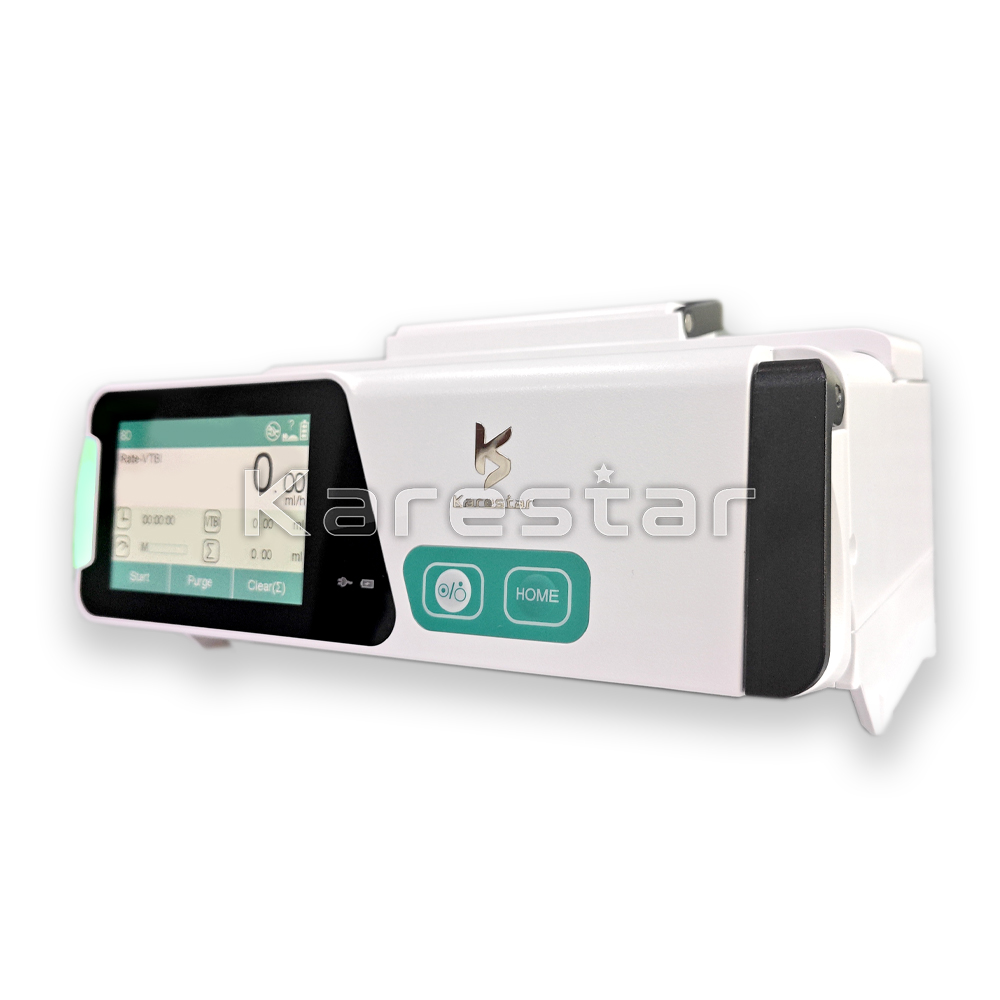

1. 3.5 inch color touch screen makes the interaction as smooth as using smart devices in your daily life.

2. 13 Infusion Modes:Rate,Rate-VTBI,Rate-time,Drop-VTBI,Time-VTBI,Body weight,Drug Library,Sequential,Loading dose,Trapezia,Intermittent,Mirco and Relay infusion function,TIVA(Optional).

3. Friedly and clear for monitoring of infusion status with Rate,time-left,VTBI,Accumulated volume,Pressure,Drug name etc.

4. Drug library& Syringe brand can be modified by the touch screen keyboard.

5. DPS(Dynamic pressure detection)function,monitoring the pressure variationgs in real time.

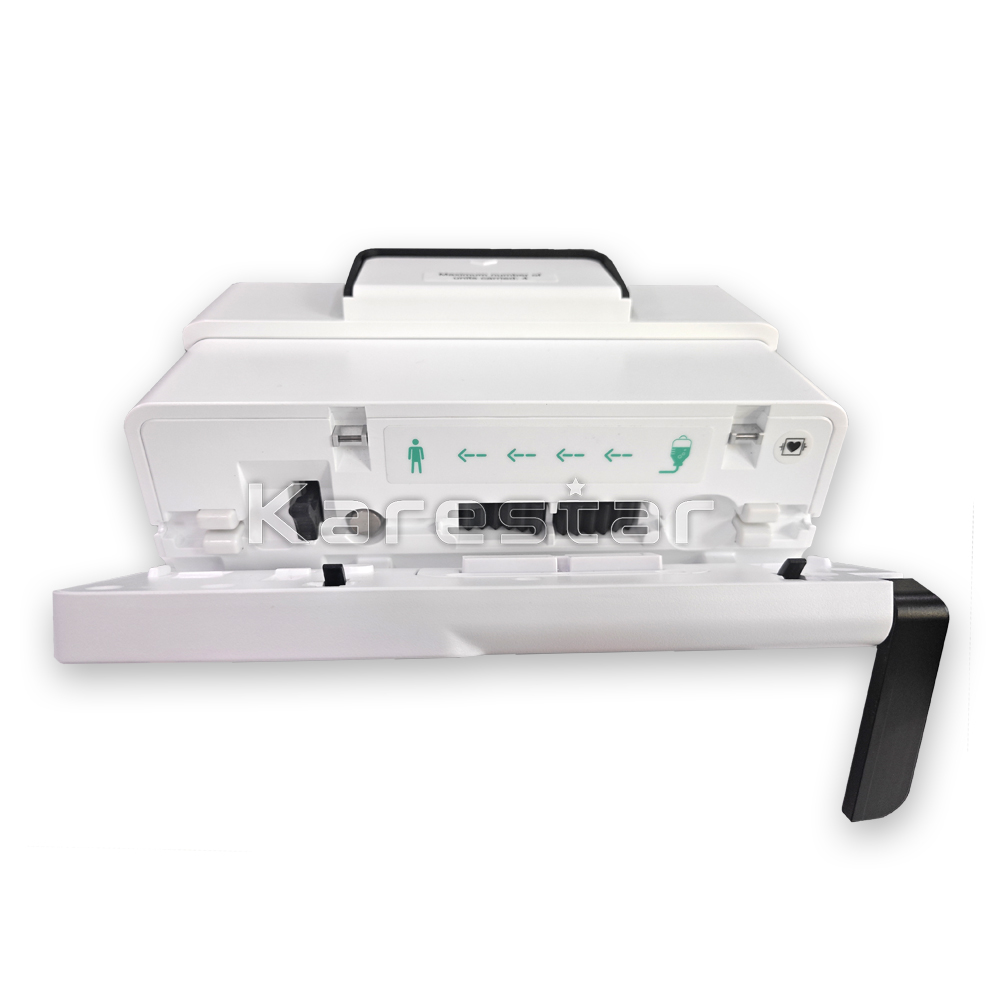

6. Open system match different brands of infusion set with self-calibration accuracy.

Close system match special infusion set to guarantee best infusion accuracy.

7. Upper/Downforce Occlusion Detection make the injection more secure.

8. Each unitis can be cascaded freely, no need other supplementary.

Standard Configuration		Other Option
Power cord	1 PC	Trolley
Main machine	1 PC

Specification

Model	K-DIP15 Touch screen syringe pump
Screen	3.5 inch Touch Screen
Infusion Mode	Rate,Rate-time,Drop-VTBI,Time-VTBI,Body weight,Drug Library Sequential, Loading dose,Trapezia, Intermittent, Mirco and Relay infusion function,TIVA(optional)
Infusion Principle	Fingertip Peristaltic Pump
I.V.Set Compatibility	Open System,match all brands of qualified PVC,TPEI.V.sets wth external diameter of 3 8mm-4 2mm,Close system (Optional).
Range of Flow Rate	0.01-2200mI/h
Flow Rate Step	0.01mI/h
Purge/Bolus Rate	0.01-2200mI/h,default 800mI/h, step by 0.01mI/h
Single Bolus Volume	0.1-50ml Adjustable,default 3ml
Time Prese	00:01~99:59 (Hour: Min)
Volume Range	1~9999ml
Drop Range	1-600d/min, step by 1 drop
Accuracy	±5%
Air in line Detection	Ultrasonic, Upper and under detection
Alarms and Prompts	Occlusion,Upstream blocked/finished,Air in line,Door open,Completion, Battery exhausted,Internal and external power disconnection,Fault; Near completion,Pause overtime,Low battery,AC disconnect, Sequence Interrupt,Network Iost;Network power access,Battery charging,Battery charging completion.
KVO	1mI/h-5ml/h,default value1ml/h,can be programmed by user step 0.01m/h
Occlusion Pressure	Low 40KPa± 20KPa Middle 60KPa ±20KPa High 100KPa±20KPa Can be customized to 8-13 levels
Internal Battery	Lithium battery,10.8/2200mAh,morethan 8 hours working back up

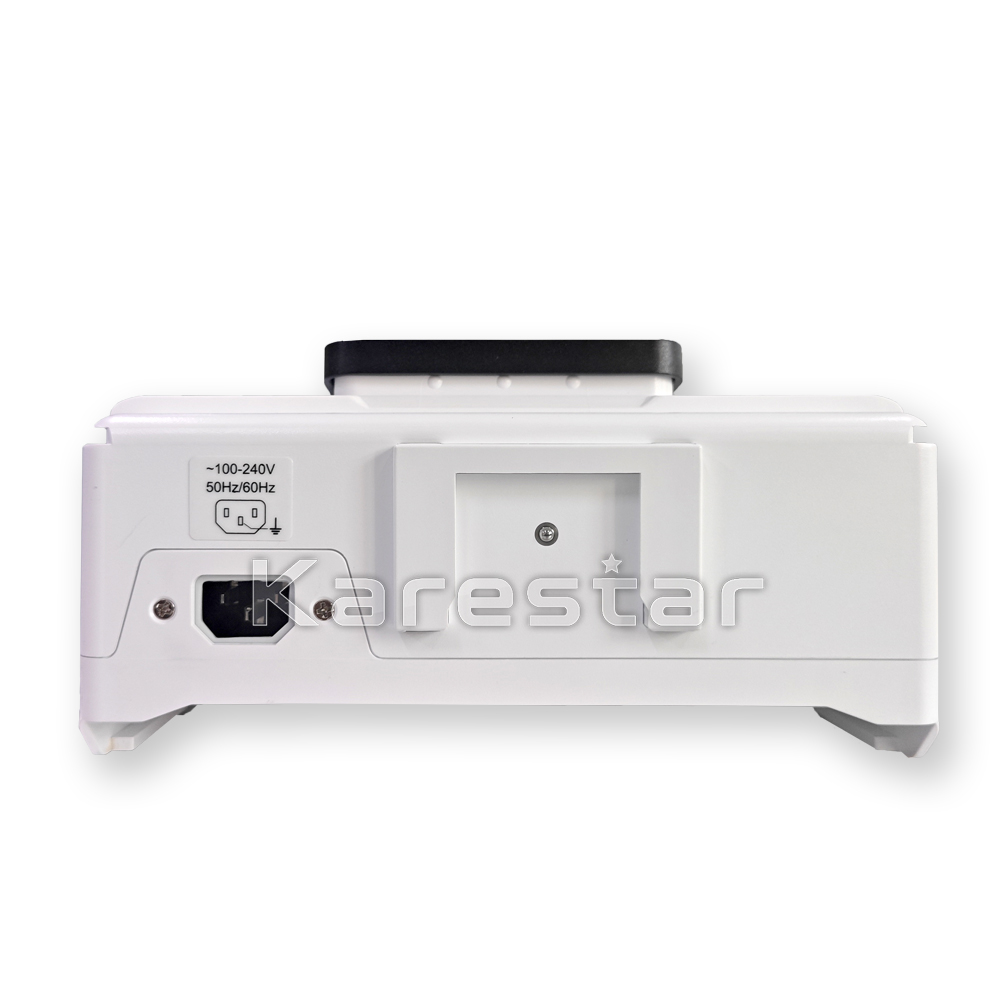

Power Supply	35VA;AC100V-240V 50HZ/60HZ
Classification	Class I, type CF, IPX4
Dimension & Weight	2.1*16.7*9.1cm,2KG
Optional Function	Ambulance DC12V, WIFI, Language customization

Standard Configuration		Other Option
Power cord	1 PC	Trolley
Main machine	1 PC
